Notes

Course Objectives

• The course provides an overview of data management architectures and analytics procedures aimed at organizing, describing and modeling Big Data (structured and unstructured).
• The convents of the course covers both technical aspects of data management/analytics and topics related to analysis managerial evaluation (how to translate the outputs into meaningful business insights).
• Two different approaches are used: theoretical and applicative. A number of data ingestion procedures and machine learning data analysis case histories are shown, on Big and Small Data, using specific data management and machine learning software.
• At the end of the course the students will be able to improve their skills to manage and to take advantages of the huge availability of data nowadays produced by a great variety of sources.

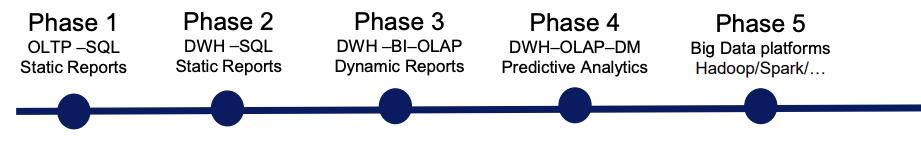

The Data Analytics Timeline - From Mainframes to Predictive Analytics

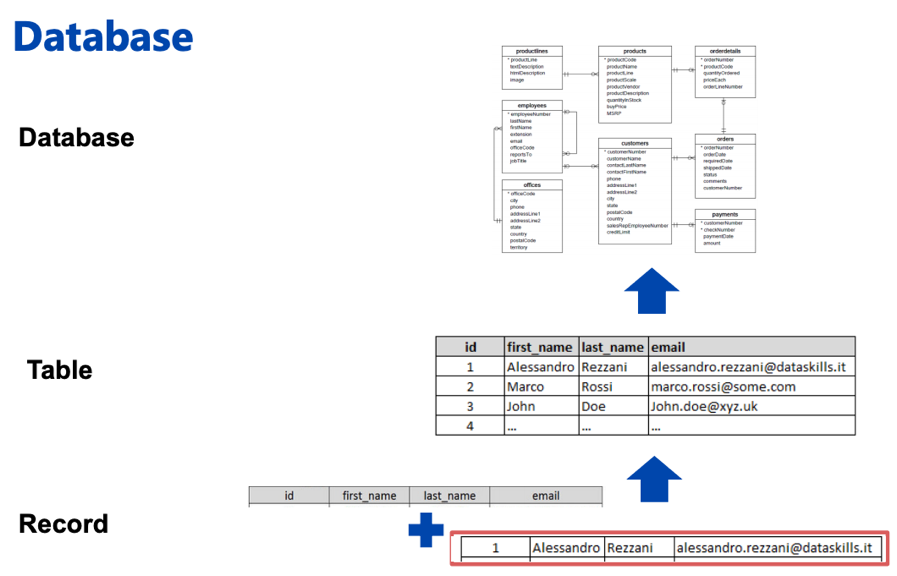

Informal definition Database = Set of tables (and other objects) Table (a.k.a relation) = set of records. It's defined by a set of fields (columns) that have a name and a data type. Record = horizontal group of values within a table. It contains values for multiple fields.

]

Phase 1 - OLTP-SQL Static Report Starting from the 80s the RDBMS (Relational DataBase Management System) and the SQL (Structured Query Languange) allow the creation of static reports (mostly printed reports). All the queries and reports are built on top of the operational databases.

What's a report? A document containing information organized in a narrative, graphic, or tabular form, prepared on ad hoc, periodic, recurring, regular, or as required basis. We can also define a report as the formatted result of database queries that contains useful data for decision-making and analysis.

Many types of reports:

• Strategic Reports:
  • Aggregated Data
  • It's a summary of the company's situation
  • It's built on a weekly or even monthly basis
• Tactical Reports
  • Less aggregated data
  • It's built on a daily or weekly basis
• Operational Reports
  • It contains both aggregated and detail data.
  • It's built on a daily basis.

Operational Databases An operational database is a database that is used to manage and store data in real time. An operational database stores the day-by-day activity of a company. They support the storage,, usage and manipulation of data for a wide range of enterprise application like ERP and CRM.

• ERP (Enterprise Resource Planning)
  • It refers to the systems and software packages used by organizations to manage day-to-day business activities, such as accounting, procurement, project management and manufacturing.
  • ERP systems tie together many business processes and enable the flow of data between them.
  • Some software tools:
    • SAP
    • Microsoft Dynamics AX
    • Oracle JD Edwards
• CRM: Customer Relationship Management is a technology for managing all the company's relationships and interactions with customers and potential customers.
  • The goal is improving the business relationships.
  • A CRM system helps companies stay connected to customers, streamline processes, and improve profitability.
  • Some software tools:
    • Salesforce.com CR
    • SAP
    • Microsoft Dynamics

When analyzing data directly on the operational databases we may come across some problems.

• The operational databases are not structured for massive reads. They are designed for fast inserts or fast updates.
• Data might be replicated in more than one database (i.e., ERP and CRM). If the data is located in different databases:
• The data format could be different
• Or we could have different different versions of the same data.
• The reporting workload might affect performances of insert/update operations and viceversa.

Note: We'll see a more complete definition of RDBMS in lesson 2. In lesson 2 we'll also see the main differences in database design between Operational Databases and Analytical Databases (Data Warehouse).

Phase 2 - Data Warehouse Due to the operational db problems, starting from the '90s, we see the rise of an analytical database, called data warehouse. At the beginning it was just a mere copy of the operational databases: it solved the performance issued caused by different workloads (massive reads vs. writes). Later the data coming from different databases were integrated, made consistent, cleansed and organized in a different data model: the dimensional model, which is more appropriate for the analytics tasks. The data warehouse is the starting point of the Business Intelligence process.

The Data Warehouse A data warehouse (DW) is a collection of corporate information and data derived from heterogeneous operational systems and external data sources. A data warehouse is designed to support business decisions by allowing data consolidation, analysis and reporting at different aggregate levels. Data is populated into the DW through the processes of extraction, transformation and loading. The data warehouse can be considered as the "single source of truth": it contains the enterprise data once they've been integrated from different sources and cleansed using business rules and data quality rules.

Business Intelligence The term Business Intelligence (BI) refers to technologies, applications and practices for the collection, integration, analysis, and presentation of business information. The purpose of Business Intelligence is to support better business decision making.

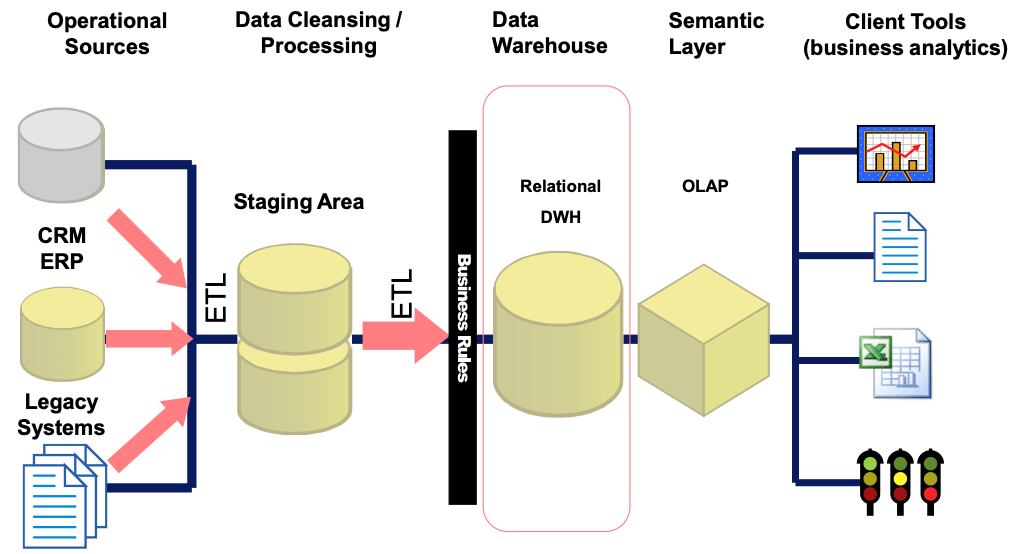

Elements of a Business Intelligence System

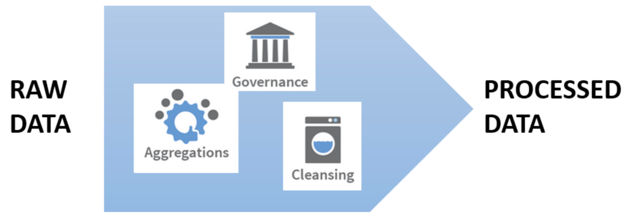

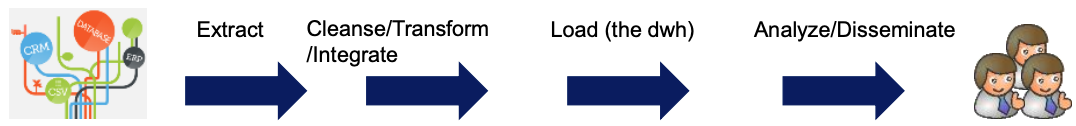

ETL (Extract Transform Load) The ETL acronym identifies both a class software tools and the process of loading the data warehouse. The ETL process:

• Extracts data from the operational sources.
• Transforms the data by applying:
  • Business rules
  • Data quality checks
• Loads the data into the data warehouse.

Phase 3 - Data Warehouse - BI - OLAP

• The data warehouse requires SQL skills to be queried. The user also needs to know the data structures and the relationships between the tables.
• Starting from the late '90s the OLAP (On Line Analytical Processing) systems come to life.

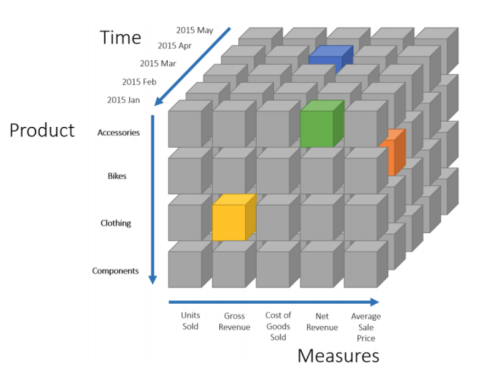

• OLAP engines are databases where the tables are replaced with multidimensional structures.
• OLAP systems combine data & metadata: the user doesn't need to know the relationships when querying the OLAP Database.
• Additionally the OLAP System are much faster than RDBMS when querying aggregated data (SUMS, AVERAGES, COUNTS, ...)

OLAP

• OLAP (Online Analytical Processing) is the technology behind many Business Intelligence (BI) applications.
• OLAP is a powerful technology for data discovery, including capabilities for limitless report viewing and complex analytical calculations.
• OLAP tools enable users to analyze different dimensions of multidimensional data.
• OLAP can be seen as a Semantic Layer that facilitates the access to the data.

OLAP clients behave like a huge pivot table on all the data warehouse data: they allow "drag&drop" analysis.

Phase 4 - Predictive Analytics

• Both the DWH and the OLAP systems provide an historical view of the data.
• Starting from year 2000 we see an increasing need to predict future events (such as the next month's sales or the cost of energy).
• A new term is created: data mining. It means discovering patterns in large data sets and find hidden patterns that can be exploited in the business.
• The data mining has many applications:
  • Customer segmentation, market basket analysis, churn analysis, campaign targeting, demand forecasting, etc.

Phase 5 - Big Data Platforms

• Starting from 2021 we start to talk about Big Data (& Big Data analytics)

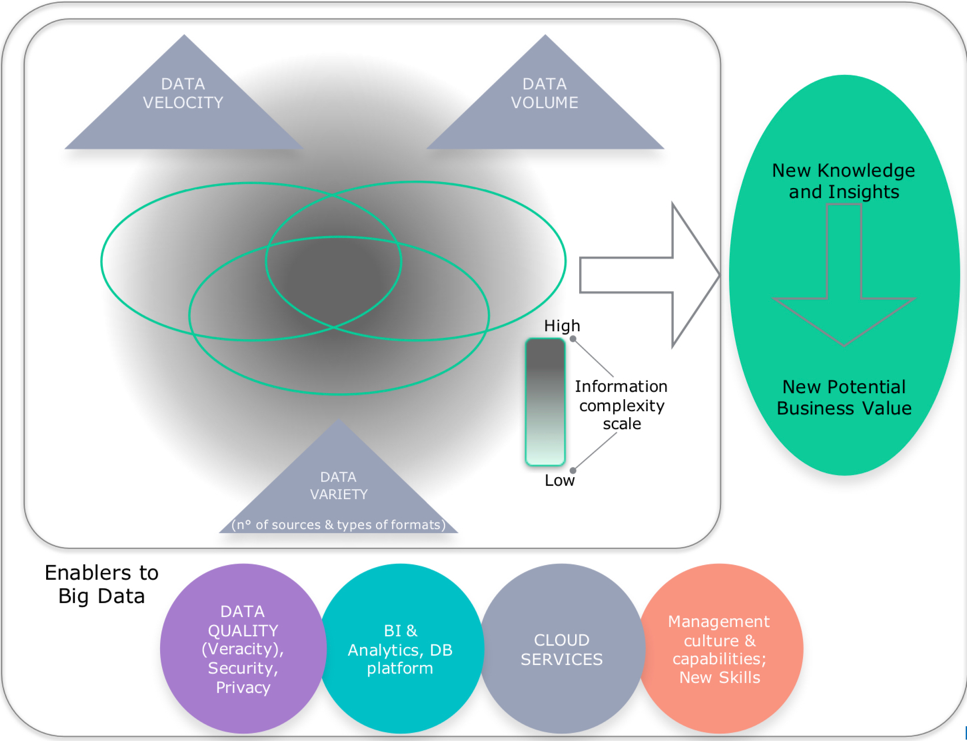

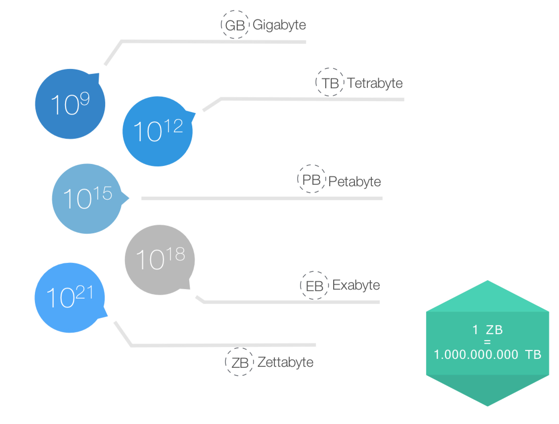

• Big Data can be defined as data with the following features:
  • Volume
  • Velocity
  • Variety

Or, better, we can say that Big Data are "data that we cannot analyze (or that we have no convenience to analyze) with traditional tools (i.e., relational databases)".

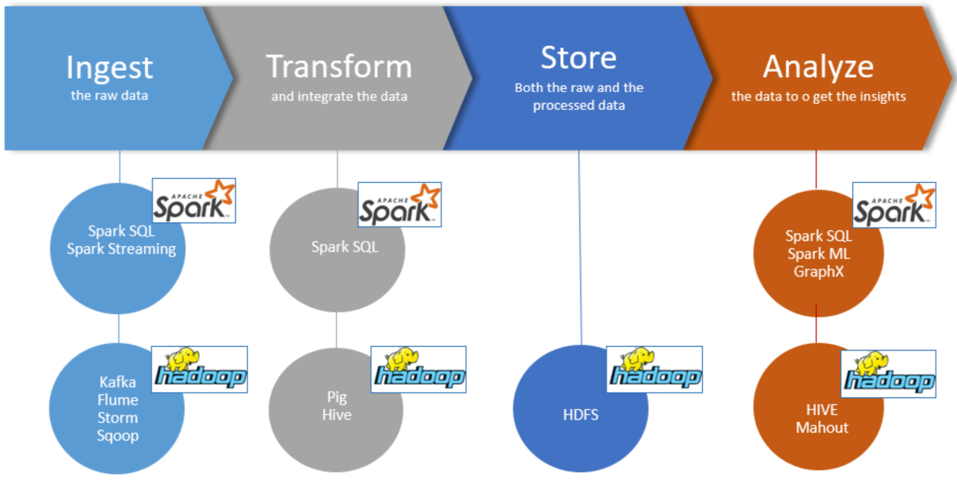

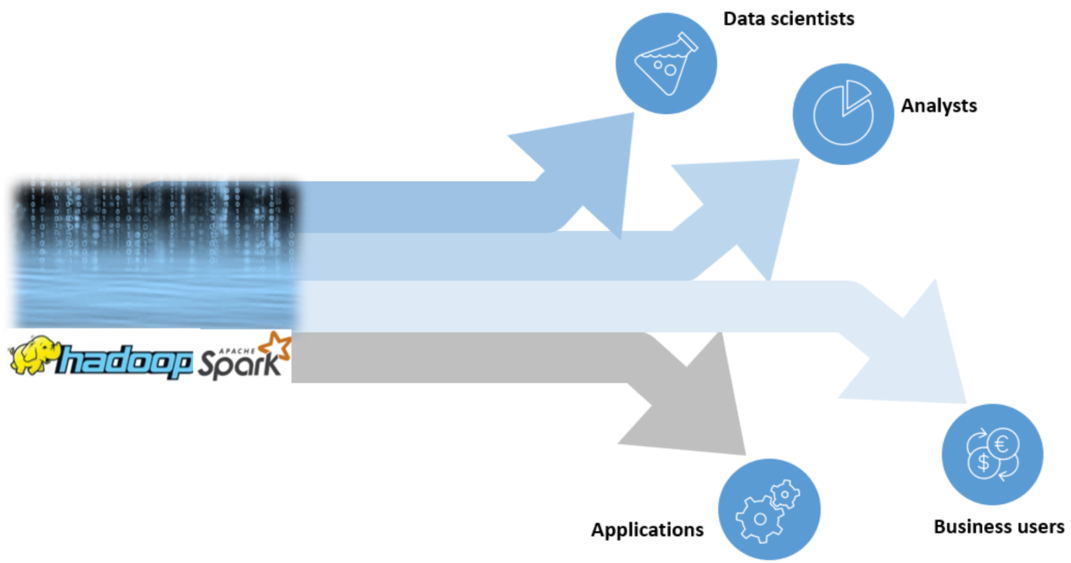

Big Data Platforms The main tools that allow us to handle massive amounts of data are:

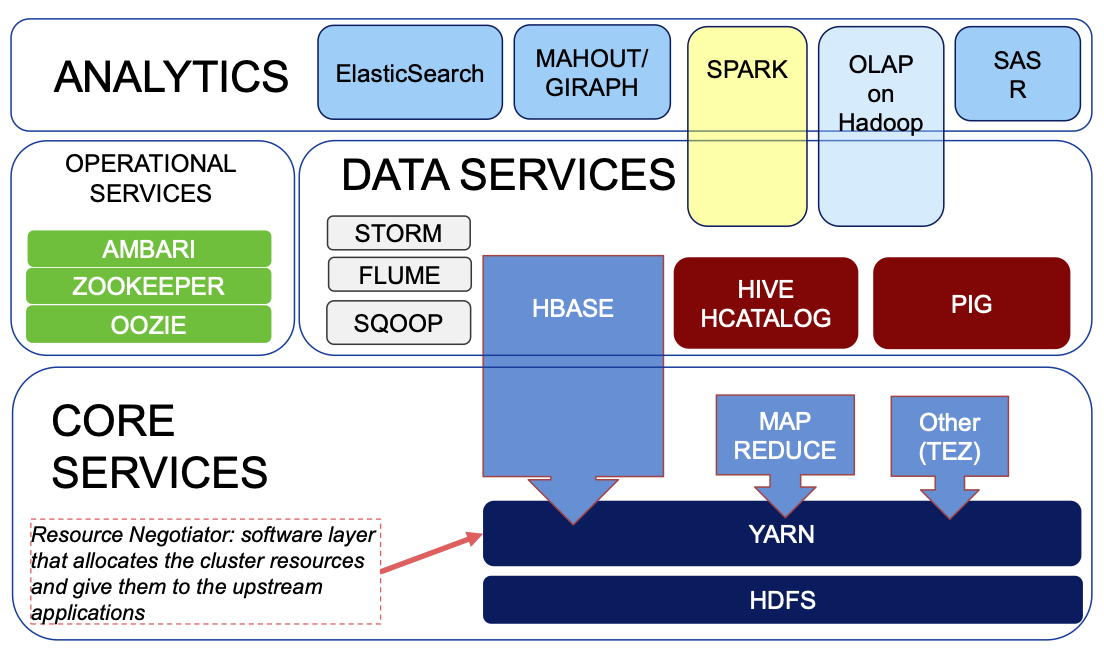

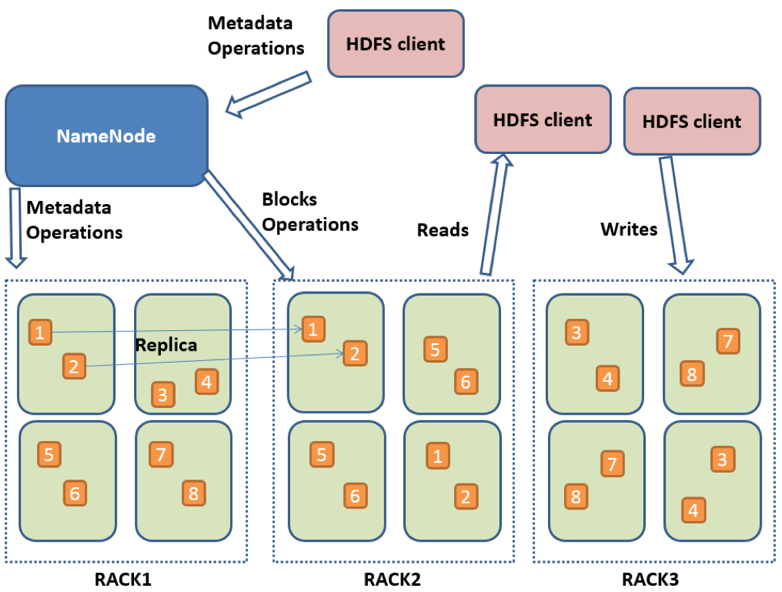

• Hadoop, which is a distributed file system and computation engine (we'll see the definition of both in lesson 6). It is comprised of many tools that cover all the data life-cycle (from the ingestion from the sources to the data presentation to the user). Hadoop can be used both for data storage and for data analysis.

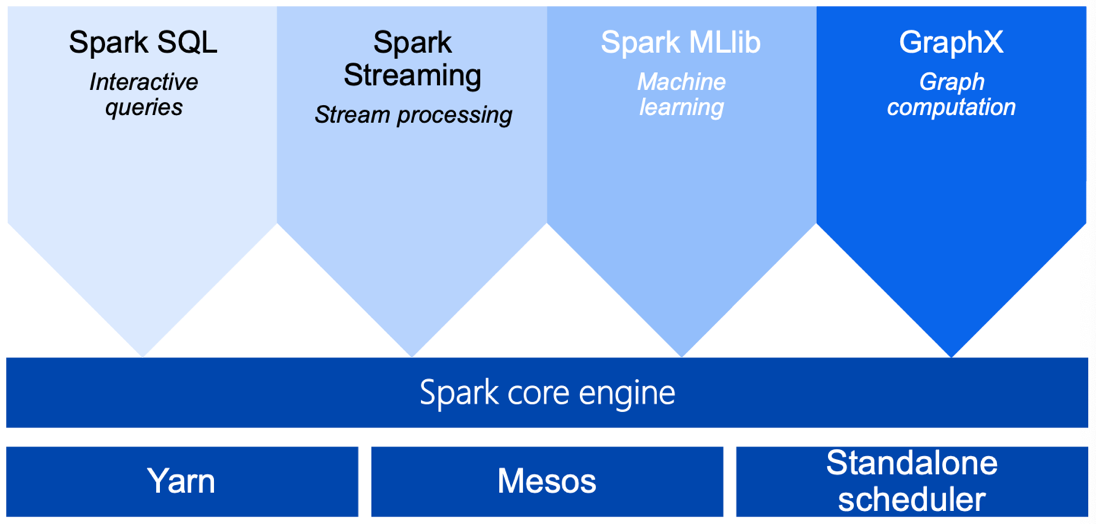

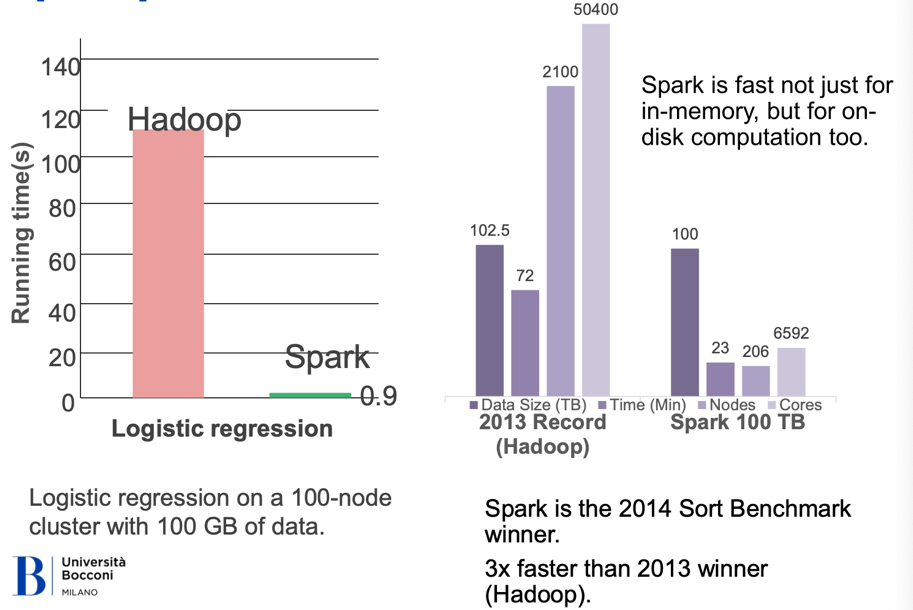

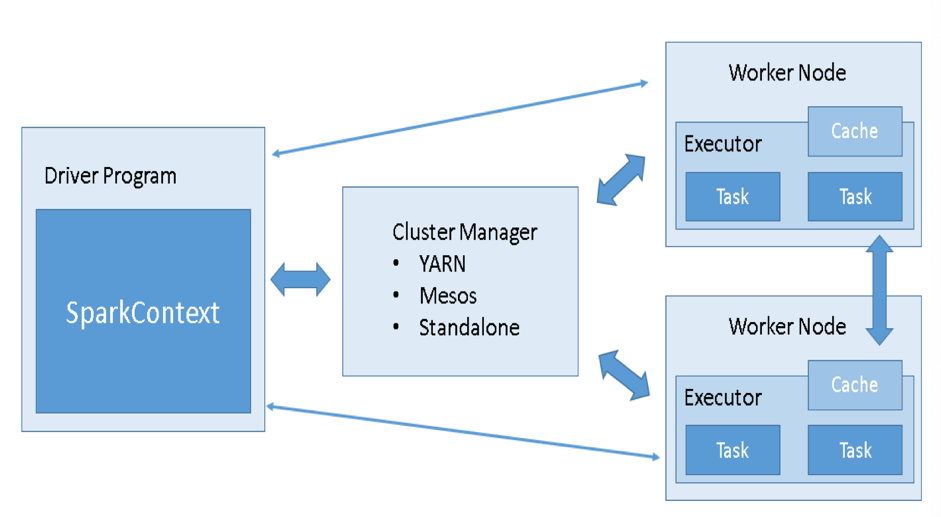

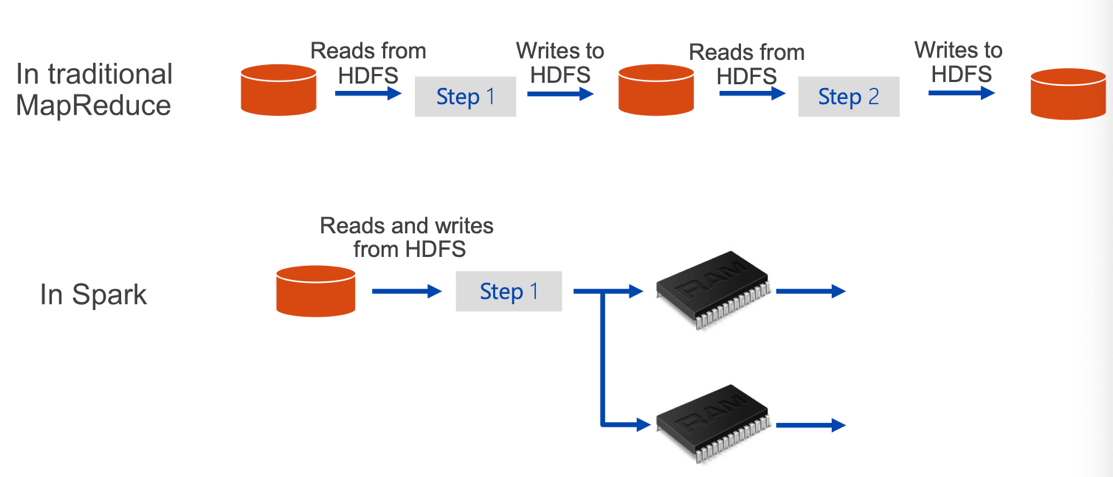

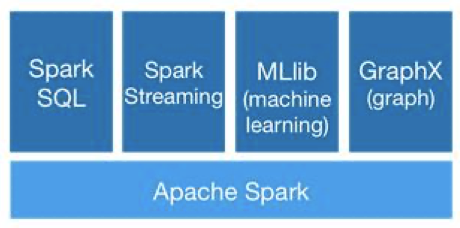

• Spark, which is a fast distributed computation engine. It is also made of many components and is more oriented to the data analysis.

Today In 2019 the trend topics in data analytics are:

• Big Data
  • New versions of Hadoop
  • New versions of Spark
• Predictive Analytics, ... a modern way to call the data mining.
• Cloud Computing
  • Platform as Service/Infrastructure as a Service
  • Scalable resources at low prices!

New Data Sources "Traditional" data sources with a deeper level of detail:

• ERPs
• CRMs
• ...

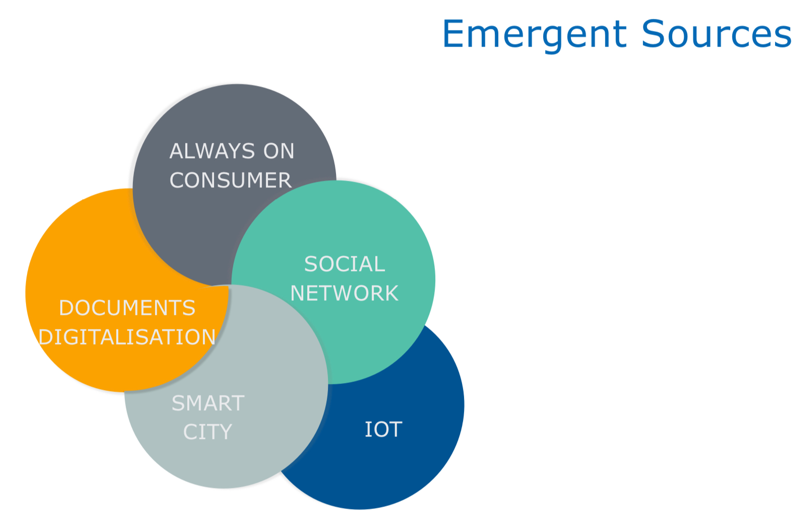

Emerging data sources:

• Scientific/Medical Equipment
• DCS (Distributed Control System)
• High Frequency Trading Systems
• Web 2.0: Blog posts, Tweets, Facebook comments & likes, images & videos.

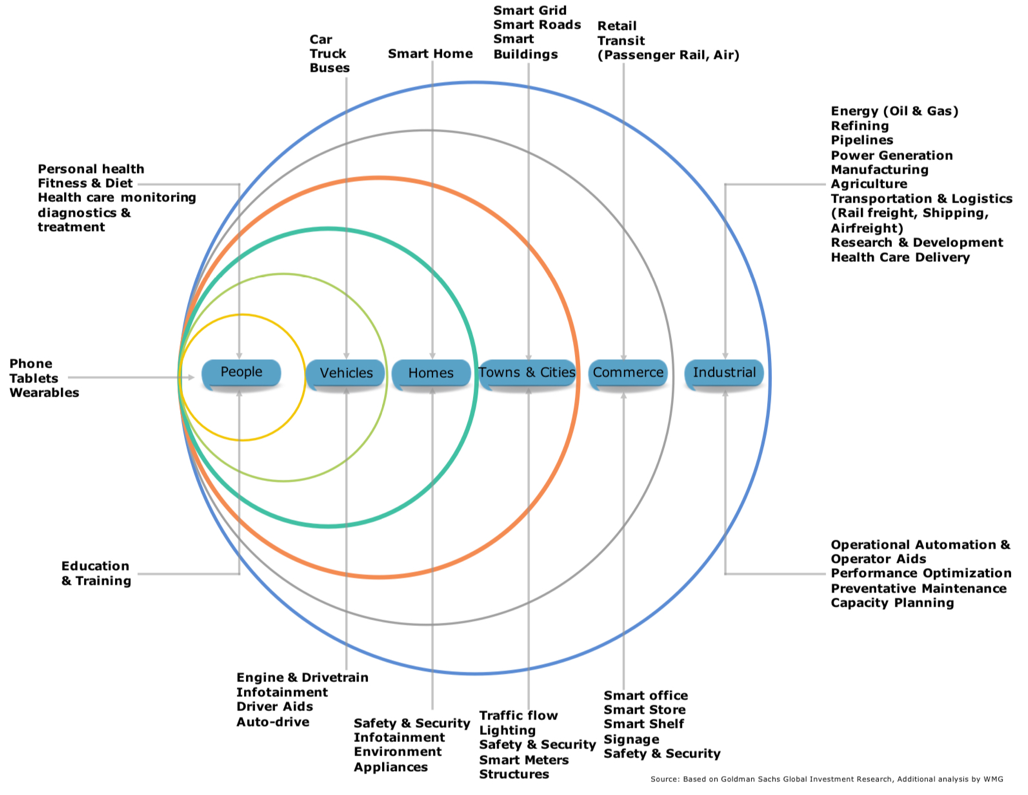

• IOT: Internet of Things.

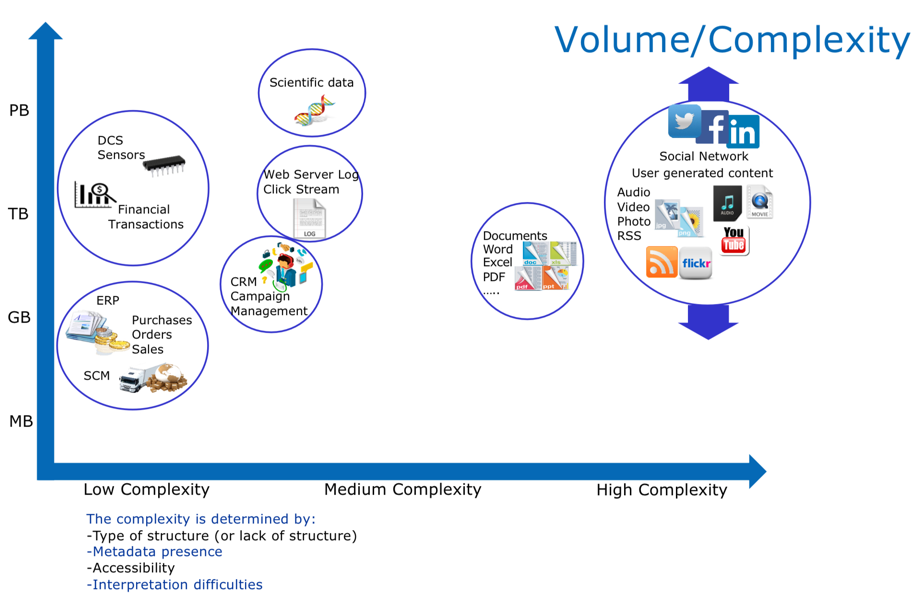

Features of Emerging Data Sources

• Volume
  • Potentially huge
  • Examples:
    • Detail level credit card transactions
    • Sensors data (from industrial plants, power facilities, etc.)
• Velocity
  • Fast data
  • Example: data coming from IOT sensors

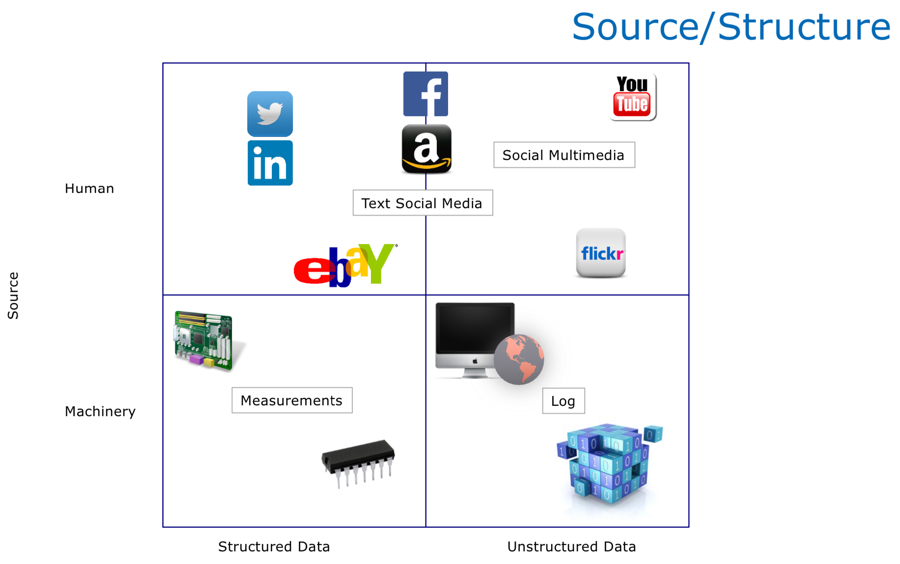

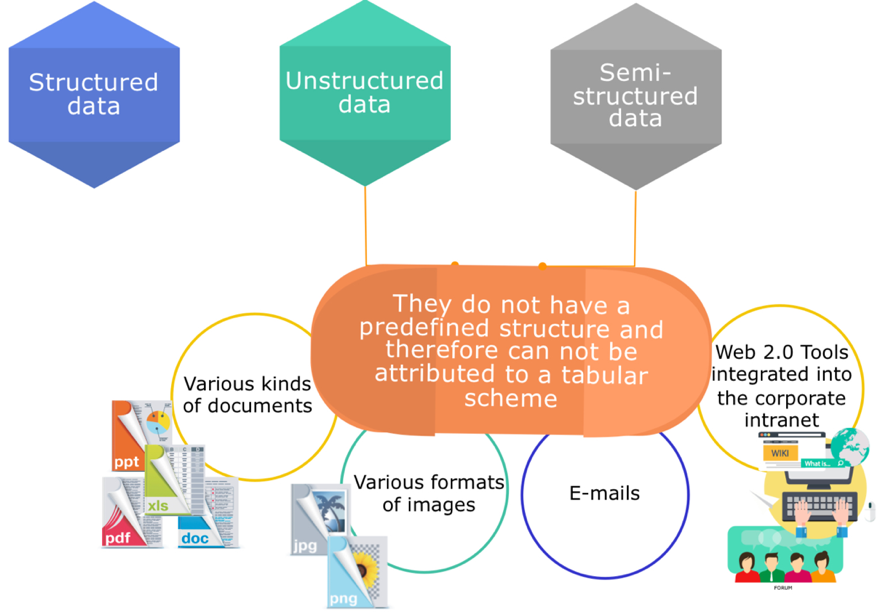

• Variety
  • Structured
    • Data that can be conveniently put into a table
    • Example: data coming from an ERP
  • Unstructured
    • Data that can be conveniently put into a table
    • Examples: text data from tweets or blog posts, Image data from medical equipment.
  • Semi-Structured
    • Most of the so-called unstructured data, are actually semi-structured.
    • Example: a tweet contains the text, which is unstructured, but it also contains other data as key/value pairs: author, date and time, location, etc.

Machine Learning / Data Mining

• Machine Learning It's the science of getting computers to act without being explicitly programmed.

• Data Mining / Predictive Analytics Is the process of discovering patterns in large datasets. It involves methods coming from of artificial intelligence, machine learning, statistics, and database systems. It analyzes the current and historical facts to make predictions about future events.

Two types of analytics

• Descriptive Analytics, it summarizes raw data and make it something that is interpretable by humans. It describes the past. The old-style static reporting and the more recent business intelligence techniques can be placed into the descriptive analytics category.
• Predictive Analytics, these analytics are about understanding the future. It provides companies with insights based on data, provides estimates about the likelihood of a future outcome. Comprises a variety of statistical, machine learning, and data mining techniques. It analyzes the current and historical facts to make predictions about future events.

Relational Databases - An Introduction to Data Structures

Relational Database A relational database is an entity consisting of logical units known as tables (also called relations). A relational database is based on the relational model of data proposed by E. F. Codd in 1970. Data in a relational database systems can be accessed using SQL (Structured Query Language). An RDBMS (Relational Database Management System) is a software system used to run and maintain relational databases.

RDBMS Key features of RDBMS:

• Stores data into tables.
• Allows the creation of new databases and their data structures.
• Allows data query and modification using an appropriate programming language (SQL).
• Allows the storage of vast amounts of data over a long period of time.
• Enables database recovery in times of failure, error or intentional misuse.
• Controls data access from many users at once.

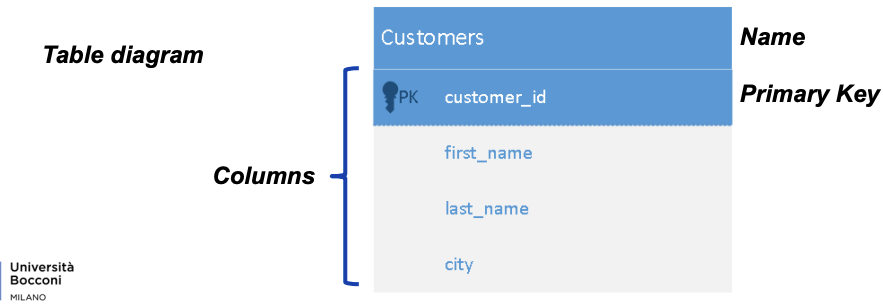

Tables A table is defined by the following metadata:

• A Name
• One or more columns (or fields)
• A primary key, which uniquely identifies a row (or record)

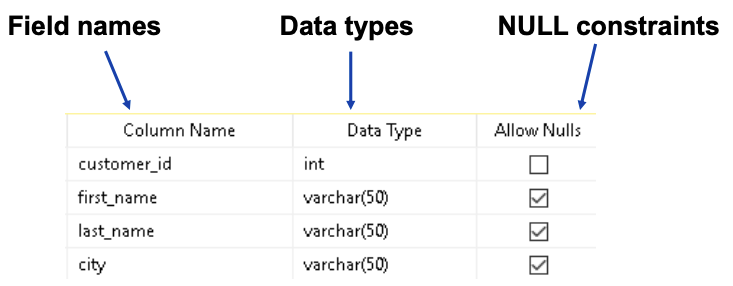

Fields & Records Columns or fields

• Fields are the building blocks of a table.
• They define the data structure of the table.
• A field is made of:
  • A Name
  • A Data Type (string, number, date, boolean, binary)
  • A NULL constraint. It's an attribute that specifies if the column can contain NULL values or not.

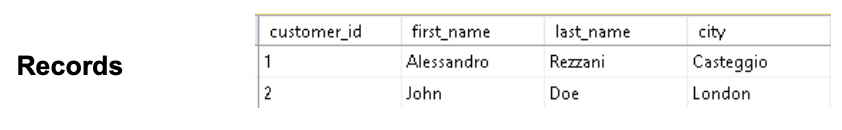

Records or tuples

• A table row is also called record or tuple.
• A record holds data for a single "entity" (i.e., a customer, a product, a supplier).
• A record contains a value for each field (for a single entity).

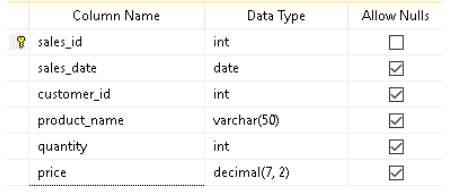

Data Types

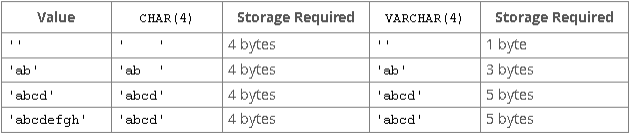

String

• CHAR(n) = fixed length n.
• VARCHAR(n) = variable length, maximum n.

Date

• DATE
• DATETIME
• TIME

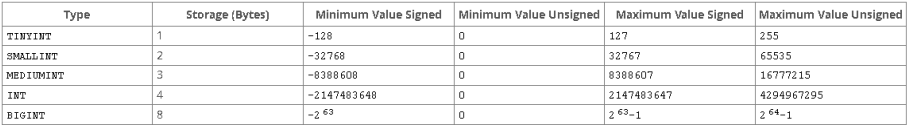

Numbers

• INT

Floating point

• FLOAT

Fixed Decimals

• DECIMAL (precision, scale). Ex: DECIMAL(5,2) = 5 digits with 2 decimals.

Primary Key

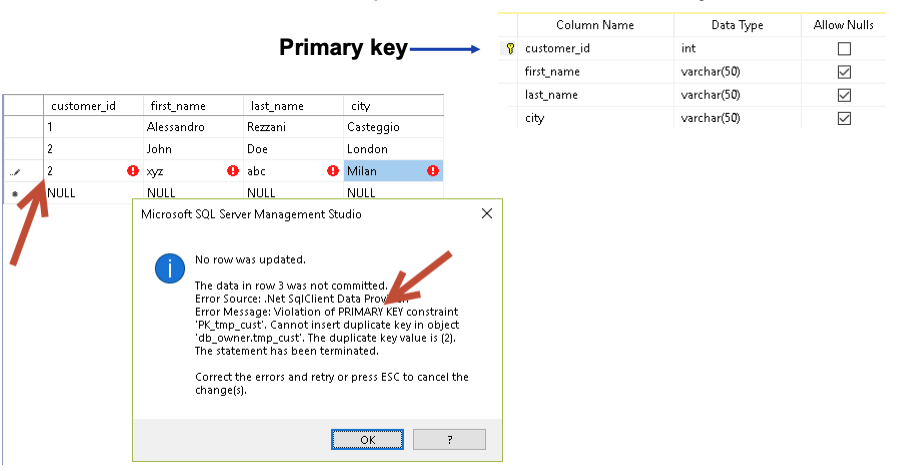

The primary key constraint guarantees the record uniqueness. When we put the primary key constraint on a column, its values must be unique. If we try and insert a duplicate value the RDBMS rejects it and returns an error:

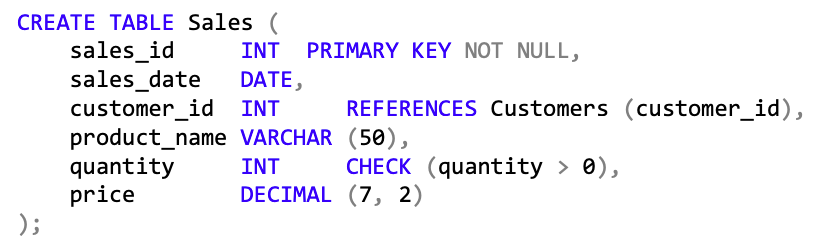

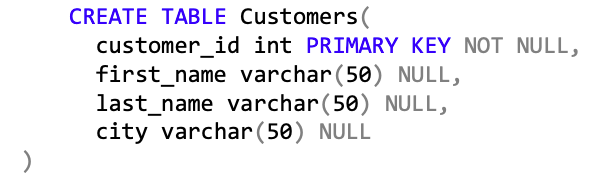

Creating a table using SQL We use the CREATE TABLE command, followed by the columns list (name, data type and NULL constraint).

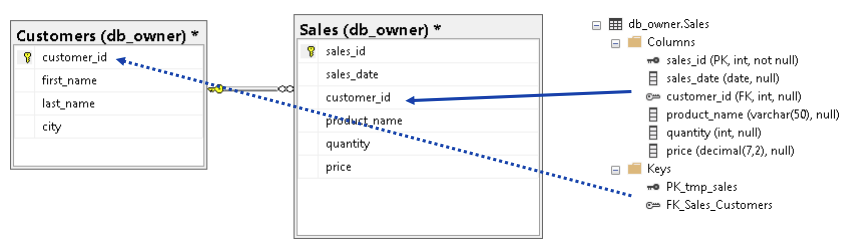

Foreign Key As the primary key uniquely represents a record in a table, we can use the primary key value to make a reference to that record. For example: let's say that we have the sales table and we want to keep track of each safe, we could create the table like this:

We don't repeat all the data for each customer, but we just use the customer_id field (the primary key) to reference a customer. But what happens if we put a non existing customer_id into the sales table? We loose consistency, because we would have a reference to a customer that doesn't exist!! To avoid this situation we can create a foreign key constraint on the sales table. The foreign key links the customer_id column of the sales table to the customer_id column in the Customers table and doesn't allow the insertion of a non existing customer_id.

Data Integrity The primary key constraint guarantees the entity (table) integrity, which means no duplicate rows (or no duplicate keys). The foreign key protects the database against the violation of the referential integrity. In fact a field with a foreign key constraint:

• Can be NULL
• Or MUST contain a value that matches one value taken from the linked primary key.

The data type of a column and the NULL constraint specify and protect the domain integrity: all the values of the same column belong to the same domain. In addition the user can define other constraint, called CHECK CONSTRAINT (for example: quantity > 0).

Full SQL Example

Dropping tables We can delete a table using the DROP TABLE command:

Other Objects A Database contains many object types along with the tables:

• Indexes, an index is a data structure that speeds up the data retrieval process. Just like an index in a book, the database index makes it possible to get data in a faster way.

Without indexes the RDBMS must scan the entire table even if we request a single record!

Database Normalization Database Normalization is a technique of organizing the data in the database. Normalization is a systematic approach of decomposing tables to eliminate data redundancy and possible anomalies in insert, update and delete operations. The normalization rules are divided into the following normal forms:

• First normal form
• Second normal form
• Third normal form
• Other normal forms (we won't see them in these lectures...)
  • Boyce-Codd Normal form
  • Fourth Normal form

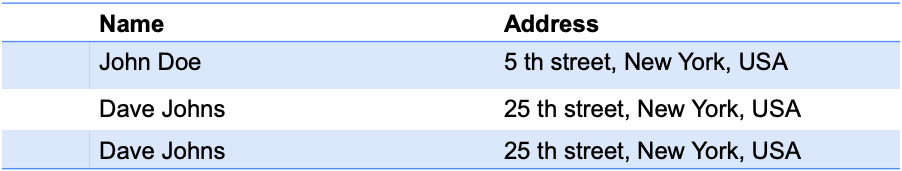

Denormalized Tables Customer Table

Employee Table

Problems In the Customer table we have:

• A duplicate record.
• The name and address fields that are not atomic: many values are store inside those fields:
  • First and Last Name in the Name Column.
  • Street, City and Country in the Address Column.

In this case it's hard to use the address data (for example, getting the customers that live in NY). In the Employee table we have:

• Data Repetition for Dep.Name and Dep.Phone.

In this case there could be update anomalies: for example if the department phone changes we must update it for all the employees that belong to that department. If an employee goes to another department, we'd have to update all the dep. Columns (code, name and phone). It's really easy to make a mistake...

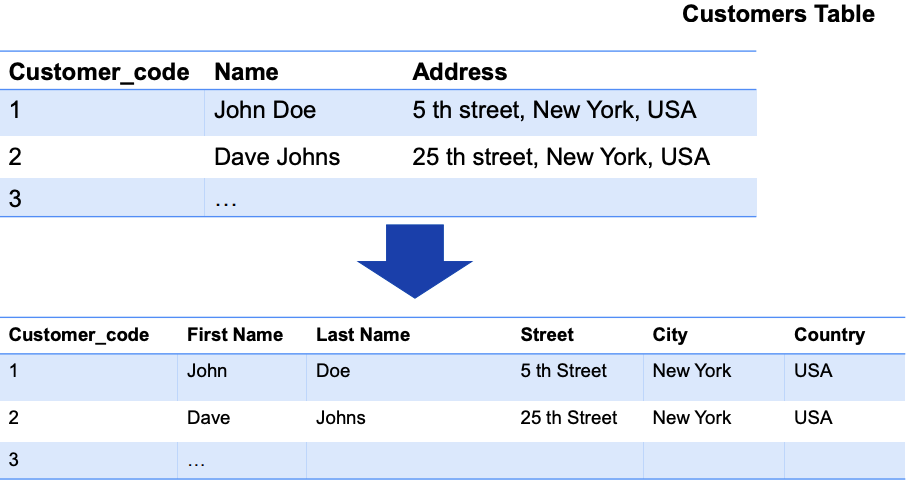

First Normal Form A table should only have single (atomic) valued columns. Values stored in a column should be of the same domain (same data type). All the columns in a table should have unique names. Records should be unique. A primary key constraint should be set in order to guarantee the record uniqueness.

Third Normal Form The table shouldn't have Transitive Dependencies. We have Transitive Dependency when a non-primary key attribute depends on other non-primary key attributes rather than depending upon the primary key.

OLTP On Line Transaction Processing. Transaction Oriented databases. They are fully normalized:

• Many tables
• Each table has few columns
• No data redundancy! This is the model for operational databases. PROS: The normalization prevents errors in insert/update/delete operations. CONS: But... the normalization makes it difficult to query the database: the analyst must put together many tables in order to create a report.

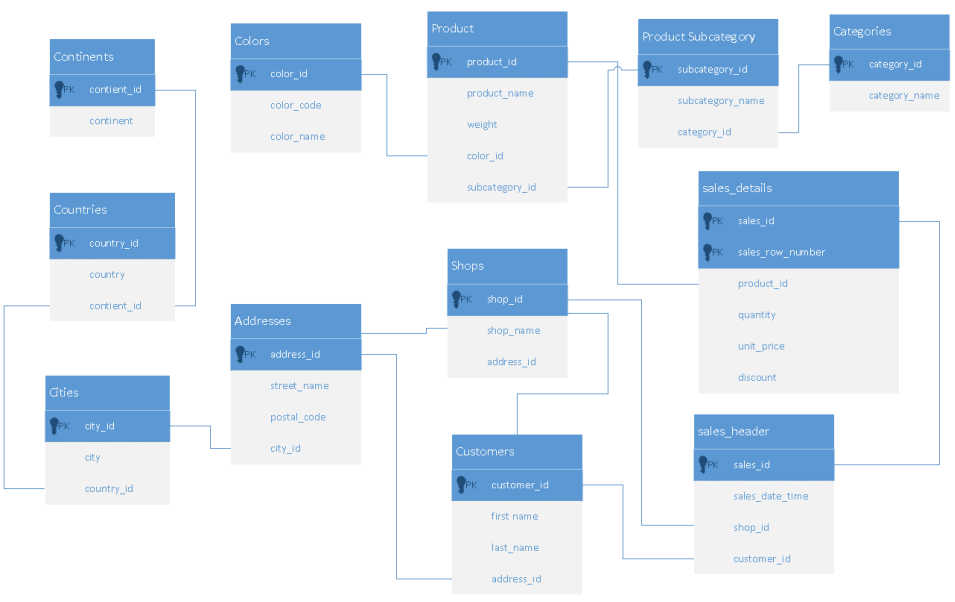

OLTP Example

Data Warehouse The data warehouse is an analysis oriented database. The purpose of DWH is to provide a simple data model for the analyst. The DWH is made of two types of tables:

• The dimensions, which are denormalized (1^st^ Normal form).
• The fact tables which are normalized (3^rd^ Normal form).

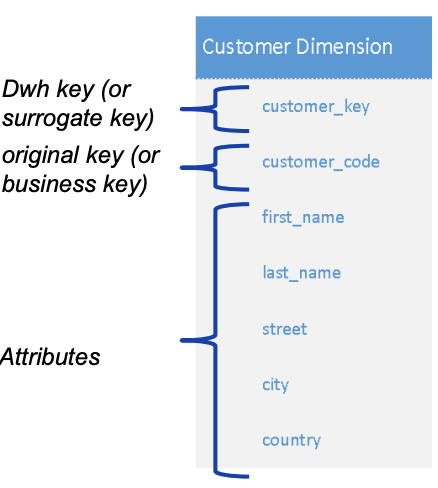

Dimensions Dimensions contains all the attributes of a business entity. The dimension key in the DWH is called surrogate key. It's a progressive number created by the ETL process. The original key (coming from the operational source) is called business key and it's stored in the dimension table. Examples of dimensions (or business entities):

• Customer
• Supplier
• Product
• Accounts
• Branches
• Departments

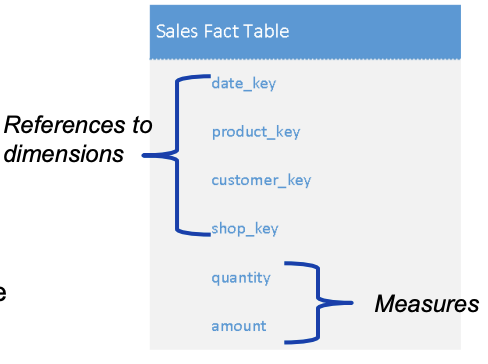

Fact Tables Fact tables contain:

• The references (surrogate key) to the applicable dimensions.
• Examples:
  • Sales fact table
  • Purchase fact table
  • Bank movements fact table

More on DWH The DWH is fed with data coming from many operational databases. The process that feeds the DWH is called ETL (Extract Transform and Load):

• It extracts data from the data sources.
• It transforms the data according to the business rules.
• It integrates etherogeneous data sources.
• It checks the data quality.
• It generates surrogate keys.
• It takes care of the data integrity in the data warehouse (Generally we have no foreign keys in the DWH and even no primary keys!)

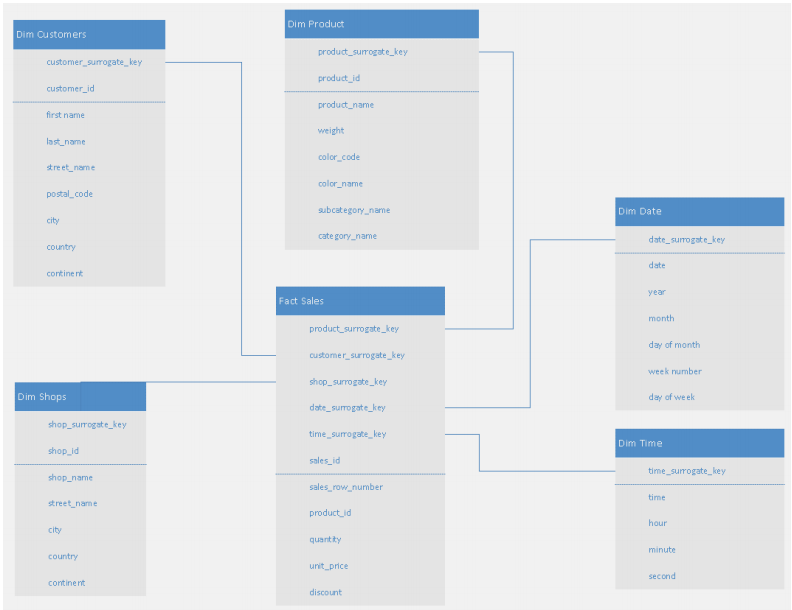

Data Warehouse Example

SQL Language Intro SQL (Structured Query Language) allows us to interact with databases. Technically SQL is:

• A domain-specific language: it only applies to databases.
• A declarative language: it expresses the logic of a computation/data retrieval/data modification without describing its control flow or algorithm. With SQL we write a query, but we don't tell the RDBMS how to actually implement it. RDMBS takes care of that, using a component called optimizer, which chooses the best way to retrieve (or modify) data.

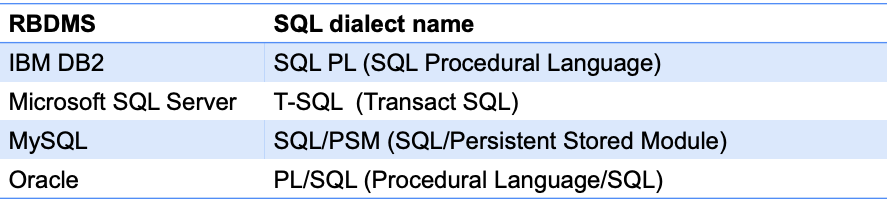

• A procedural language, because all the SQL dialects (implementation inside different RDBMS) contain procedural instructions (like IF, WHILE, ...)

Why SQL for big data? Most of the Big Data and NoSQL tools have an SQL interface:

• Hadoop
  • Hive works with a language called HiveQL which is an ANSI version of SQL + some Hadoop specific commands.
• Spark
  • SparkSQL is a component in the Spark platform.
• NoSQL
  • Native tools
    • Cassandra have the CQL language which is a dialect of SQL.
    • Hbase
  • ODBC Drivers

SQL consists of many types of statements, that can be grouped into 4 sublanguages:

• Data Query Language (DQL) used to retrieve data from the database.
• Data Definition Language (DDL) used to create tables and other objects (views, procedures, etc.)
• Data Control Language (DCL) used to grant access to the database objects. It's used to manage users' permissions on the db objects.
• Data Manipulation Language (DML) used to insert, update and delete data.

Some definitions:

• A Query retrieves data from one or more tables. It begins with the keyword SELECT.
• A Statement modifies data, the table schema (columns and data types) or controls the program flow. Keyword examples:
  • INSERT, UPDATE, DELETE.
  • CREATE TABLE / DROP TABLE
  • BEGIN, END, IF, WHILE
• A Clause is a part of a query or statement. We have:
  • The WHERE clause, that filters the records.
  • The SET clause in the UPDATE statement.
• An Expression returns scalar values or tabular values (rows and columns).
  • Example: Where city = 'Milan' ('Milan' is the expression)
• A Predicate is a logical condition used in the WHERE clause.

Some SQL Dialects

Hadoop - The Big Data "Ecosystem"

Data Types

• Structured Data
• Unstructured Data
• Semi-Structured Data

Without a structure (fields or columns). We can't conveniently put them into a table:

• Documents (Word, Excel, PowerPoint, PDF, ...)
• Images
• E-Mails
• Web 2.0 (blog posts, forum, wikis, ...)

Big Data Data that have one or more of the following features:

• Volume (Potentially huge)
• Velocity (Fast data)
• Variety (Structured, Semi-Structured, Unstructured).

A better definition:

• Data that we can't analyze using a traditional technology (like RDBMS)
• Data that could be analyzed using an RDBMS, but at a huge cost.

For huge amounts of data we need more than one machine: we need a distributed system that can split the data among its nodes and can perform distributed computations. For the unstructured data we need a system that works with non tabular data structures. For complex calculations we need a system that can handle (for instance) machine learning tasks in a distributed manner. Moreover, we need a tool that is easy to use (at least for the final user). Does such a system exist?

Big Data Tools We have two main tools in the big data panorama:

• Hadoop is a complete platform for Big Data.
• Spark is an high performance calculation engine.

Hadoop It is a distributed calculation system based on two components:

• HDFS: Hadoop Distributed File System.
• MapReduce: a distributed calculation framework.

Key Points:

• Open Source
• Distributed (Up to thousands of nodes)
• Fault Tolerant
  • Hadoop is built to run on commodity hardware.
  • The fault tolerance is guaranteed using replication.
• Scalable
  • Up to thousands of nodes.
• Can handle both structured and unstructured data.

Definitions

• Node = Single Server.
• Rack = Case with a bunch of Servers.
• Cluster = Collection of Servers that behaves as if it was a single machine. Can be made of one or more racks.

How HDFS works

Distribution

• Each file in the distributed file system is made of parts called blocks (generally 64 or 128 MB).
• A server, called Name Node, contains all the file system metadata (i.e., the list of all the files, the list if each block and their locations).

Replicas

• Each block is replicated (the default replication factor is 3, but it can be changed).
• Replication ensures the fault tolerance (at least until all the nodes with the replica of the same block fail).
• HDFS is rack aware: the replication ensures that even if an entire rack fails, all the data is still available.
• The Name Node is the master node in the Hadoop cluster.
  • It handles metadata operations (like creating a new file, renaming file, deleting a file).
  • The name node also takes care of the replication.
• The other nodes in the Hadoop cluster are called Data Nodes.
  • They are slave nodes.
  • Data nodes take care of the read and write operations.

Replication and Hadoop v3 The replication mechanism ensures a certain level of fault tolerance. But it requires more disk space to store the data (n times the actual file size, where n is the replication factor). In Hadoop 3.x the replication has been replaced by a more space efficient algorithm called "Erasure Coding" which reduces to 50% the Storage overhead:

• The EC algorithm adds some data to each block.
• That data is encoded in such a way that the system can use it to rebuild other blocks (in case of their unavailability.

Map Reduce MR is a distributed computation engine that works with data stored in HDFS. Although today we have other (and more efficient) engines in Hadoop, Map Reduce is the one from which all the other system have been derived.

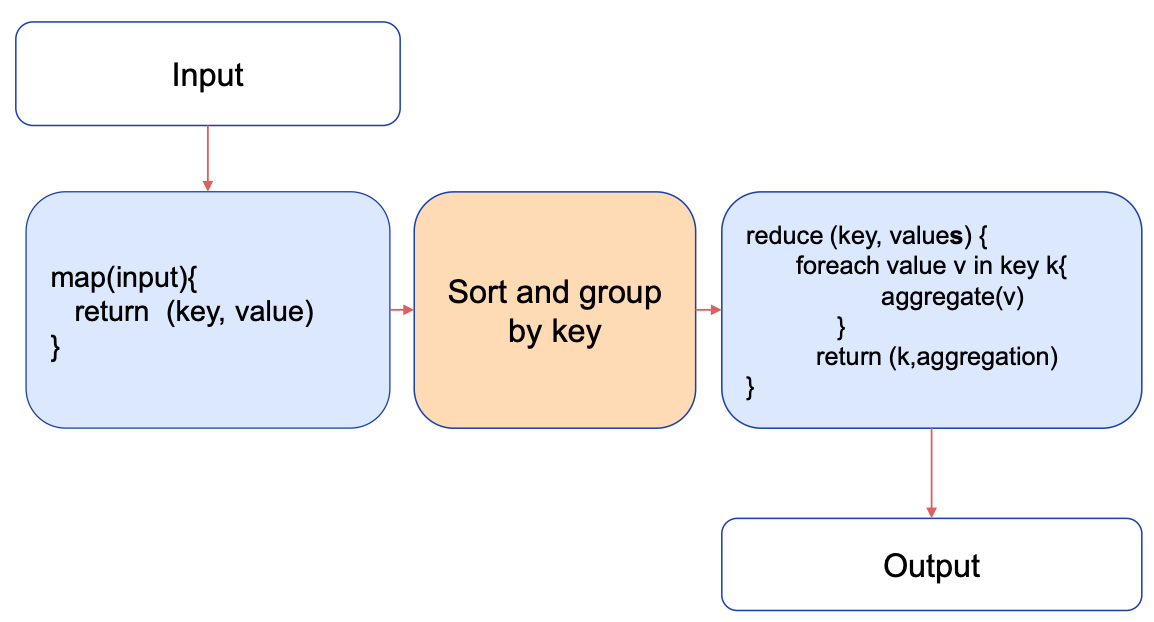

How Map Reduce works Map Reduce only has a Java API: the programmer must split the problem in two phases:

• The Map phase, in which the data are prepared and "mapped" to a key-value structure. The "mapper" program output is a key-value data structure.
• The Reduce phase, where the actual calculation is performed. The "reducer" output is the final result that is saved to an HDFS file.

The system receives the mapper and the reducer programs and performs the following operations:

• It executed the mapper program on each node where the input file parts are stored.
• It sorts, shuffles and aggregates (puts the values of the same key together) the outputs of the mapper programs.
• It executes the reducer program on each node.

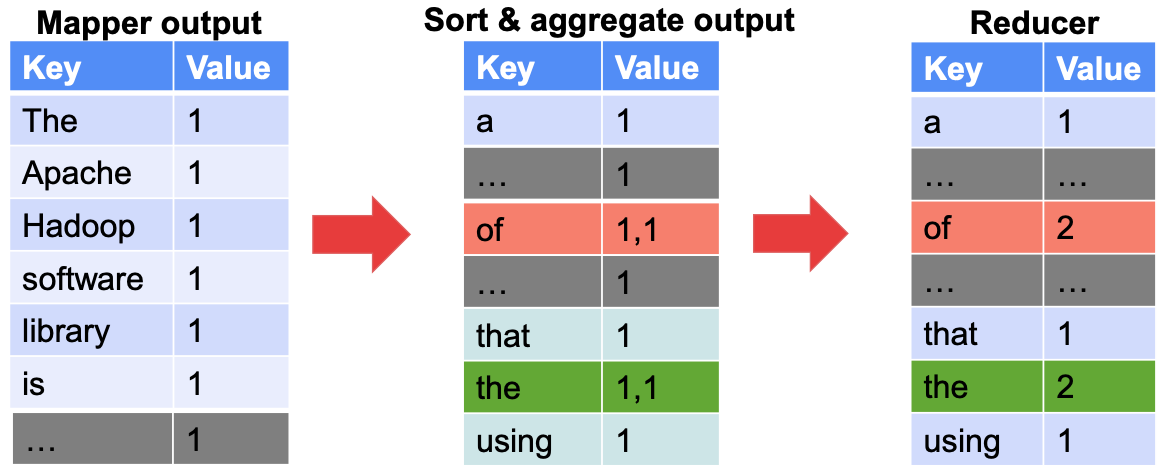

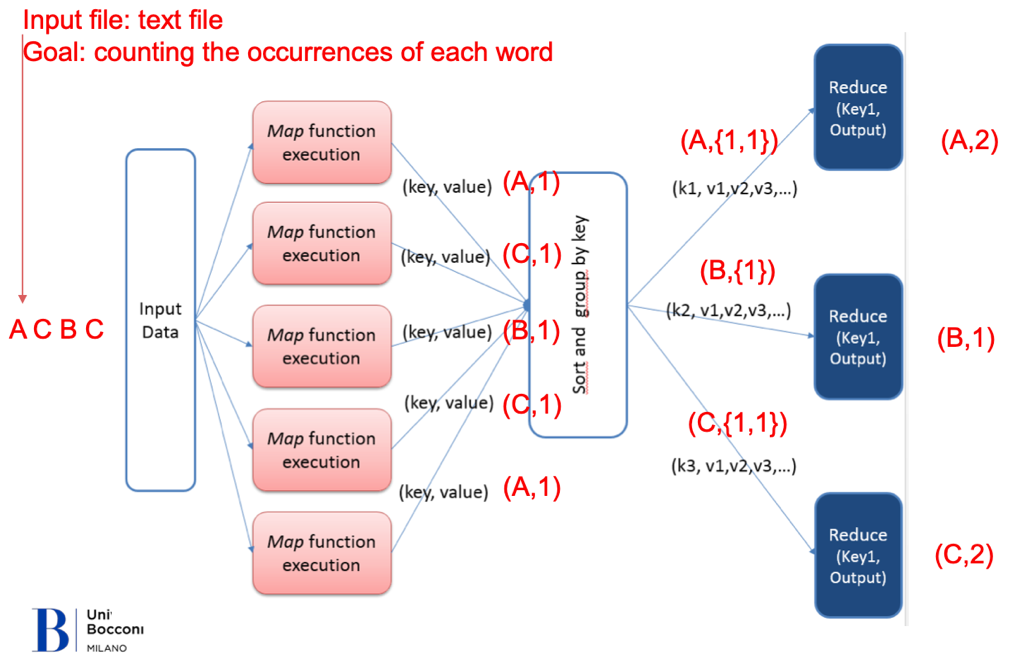

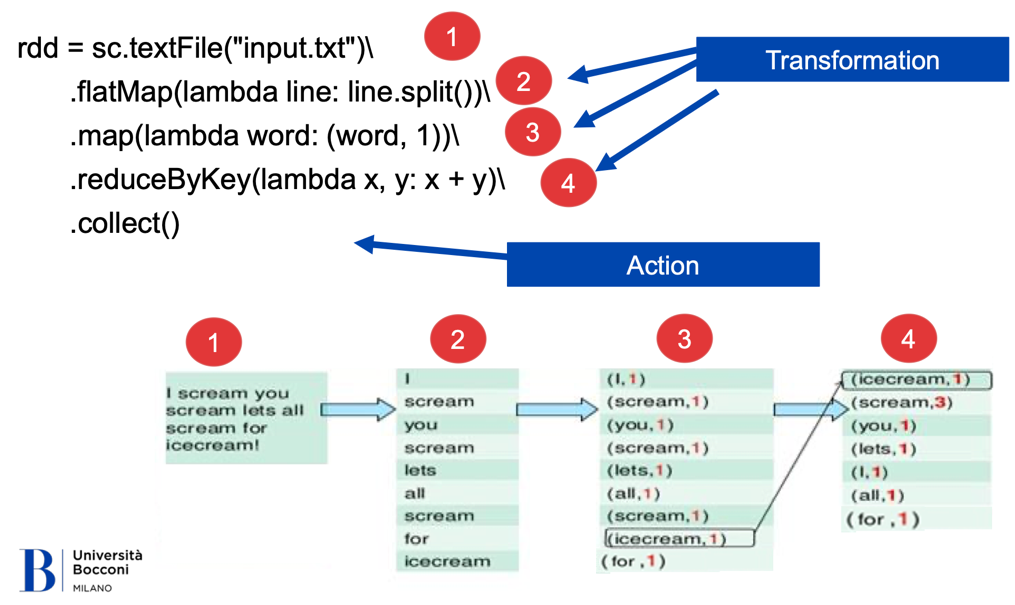

Word count is the first task we accomplish when performing a text analysis.

"The Apache Hadoop software library is a framework that allows for the distributed processing of large datasets across clusters of computers using simple programming models."

Map Reduce: Batch Workload Map Reduce has been designed for batch workloads: Computations on a huge amount of data, that complete in minutes or even hours. Map Reduce isn't suitable for interactive queries (like the ones we issue against an RDBMS, i.e., many queries on a small amount of data): for this type of workload we expect the query to return a result in seconds or even in tenths of a second. Map reduce is hard to program and most problems are very difficult to design with a Map Reduce logic.

Pig and Hive Pig and Hive are high level tools that simplify the usage of Map Reduce.
They provide an high level language:

• Pig Latin: procedural language whose instructions resemble the SQL keywords.
• HiveQL: an SQL dialect with implements the ANSI SQL syntax + some built-in functions.

They translate the programs in the high level language into Map Reduce Jobs. The main Hadoop distributions provide ODBC Drivers that allow the user to connect to hive like if it was an RDBMS: in this way all the Business intelligence & reporting tools can connect to Hadoop!

The Hadoop Ecosystem (simplified)

Core Service

• HDFS: Hadoop Distributed File System
• YARN: A resource negotiator, that takes care of allocating the resources for each Hadoop task.
• Map Reduce, Tez and Spark: the distributed calculation Engines.

Data Services

• Hive: the SQL interface to Hadoop. It translates HiveQL (SQL) programs into Map Reduce, Tez or Spark programs.
• Pig: another service that translates Pig Latin programs into Map Reduce, Tez or Spark programs.
• Hbase: the NoSQL columnar database that only works inside Hadoop.
• Storm & Flume: data ingestion tools used to read data that is produced in streams. (e.g., servers logs, tweets, sensors data from IOT devices, ...)
• Sqoop: it's a sort of ETL tool that acts as an interface between the RBDMS and Hadoop. By means of Sqoop we can import data from a relational database to Hadoop or export data from Hadoop to an RBDMS.

Operational Services

• Ambari: web tool used to manage the Hadoop cluster.
• Oozie: workflow tool that the developer can use to orchestrate the execution of different jobs (Map Reduce, Hive, Pig, Sqoop, Flume, Storm, ...).
• Zookeeper: it shares and keep synchronized the configuration files for each application.

Analytical tools Tools that only work inside an Hadoop cluster:

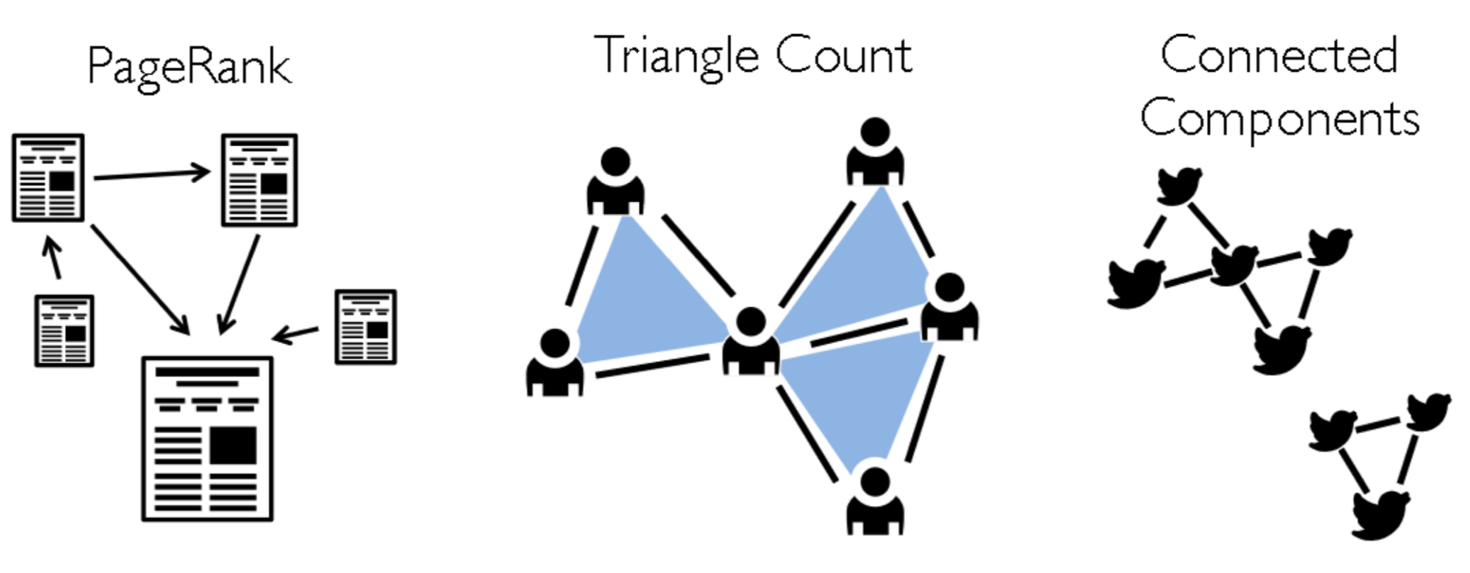

• Giraph: a graph database tool.
• Mahout: a machine learning library.
• Kylin: OLAP tool on Hadoop. It exploit the columnar storage provided by HBase for saving aggregations and using them to support Hive queries.

Other distributed tools:

• Elastic Search: a very powerful search engine.
• Spark: a fast calculation engine.

Other analytic tools that can connect/interact with Hadoop.

• SAS: it provides components for interacting with Hadoop and Spark.
• KNIME: it provides components for interacting with Hadoop and Spark.
• R (The Microsoft R version is full integrated with Hadoop).

The Hadoop Distributions Installing a cluster using the Apache Hadoop distribution can be very hard. There are other Hadoop distributions that provide a semi-automatic installer that make it easy to deploy an Hadoop cluster. The most famous one is Cloudera. In 2018 the merged with Hortonworks, another company that provides a Hadoop distribution.

Hadoop pros & Cons Pros

• Can handle every data type
• Can store and compute huge amounts of data

Cons

• Complex system.
• Difficult to install and maintain.
• Slow for a certain kind of workloads (like interactive queries).

Other tools in the Big Data Scenario

• NoSQL Databases
• Distributed databases: they work on more than 1 server simultaneously
• Mostly open-source
• Horizontally scalable: adding one or more servers we increase the computation power and/or the available storage.
• Schema free: there's no table definition and can host data with variable structures.
• They have a simple programming interface ... but most of times they have SQL interfaces.

NoSQL Taxonomy

• Key-Value stores (DynamoDB), data are stored in key-value pairs.
• Document Oriented DB (MongoDB), the typical data structure is a JSON or XML fragment (both contain both metadata (the keys) and the data (the values)).
• Column Oriented DB (Cassandra), the main data structure is the column.

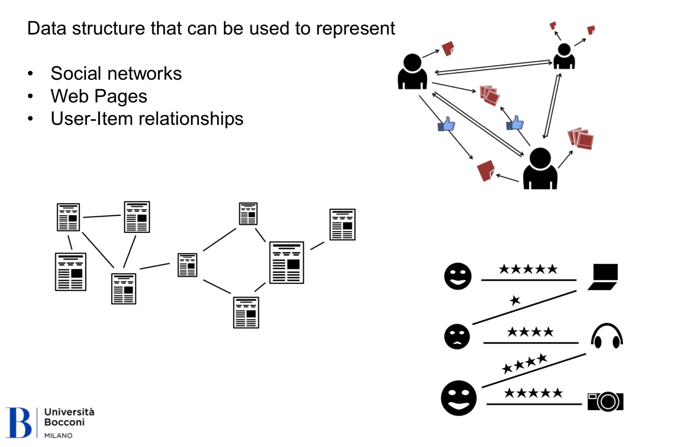

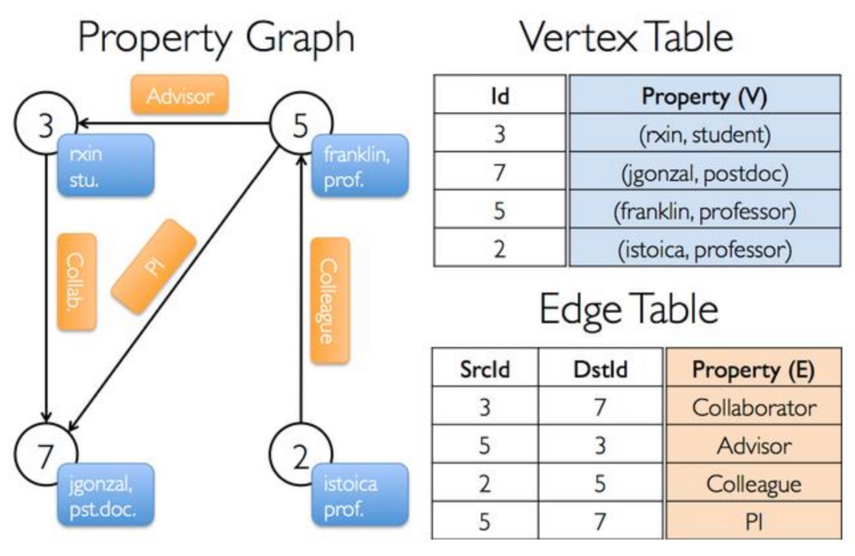

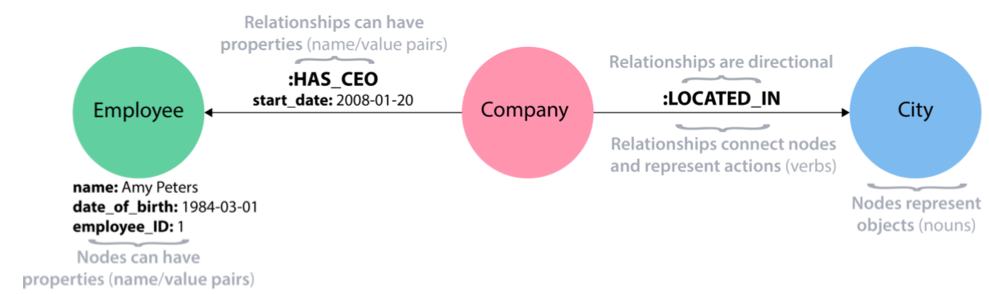

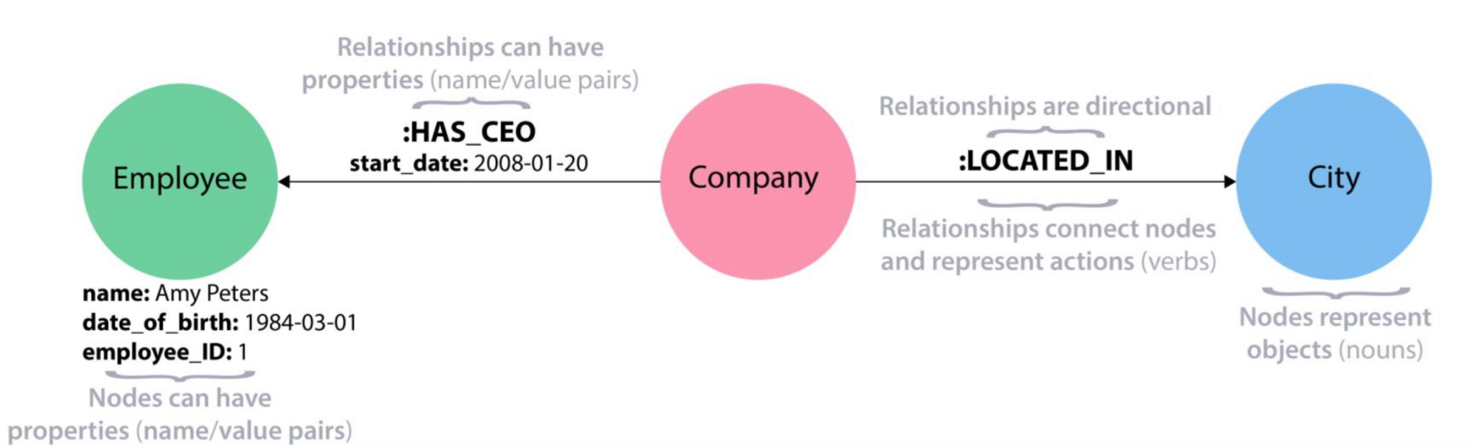

• Graph oriented DB, based on the graph concept (nodes + relationships).

Querying a Relation Database - the SQL Language

SQL Sub Languages SQL consists of many types of statements, that can be grouped into 4 sublanguages:

• Data Definition Language (DDL), used to create tables and other objects (views, procedures, etc.)
• Data Manipulation Language (DML), used to insert, update and delete data.
• Data Query Language (DQL), used to retrieve data from the database.
• Data Control Language (DCL), used to grant access to the database objects. It's used to manage users' permissions on the db objects.

Data Definition Language (DDL)

• CREATE TABLE, creates a table.
• DROP TABLE, deletes a table from the database. It deletes both the data and the table definition.

Data Manipulation Language (DML)

• INSERT, insert a record into a table.
• INSERT (Select), insert more records into a table.
• DELETE, deletes one or more records from a table. DELETE supports the WHERE clause (like the SELECT statement).
• UPDATE, changes one or more values into one or more records. UPDATE supports the WHERE clause (like the SELECT statement).

Data Query Language (DQL) - The Basics

• SELECT, the select statement retrieves data from one or more tables.
• Use SELECT with column list to show columns.
• Use FROM to specify the source table or view
  • Specify both schema and object names.
• End all statements with a semicolon.
• Displaying only specified columns.
• Displaying all columns.

SELECT: Calculations & Aliases Calculations are scalar, returning one value per row.

Using scalar expressions in the SELECT clause:

SELECT: Functions In the select list (but also in the WHERE clause) we can use built-in functions:

• Date Functions (not supported in SQL LITE):
  • YEAR
  • MONTH
  • DAY
  • They return the year, the month or the day of a date.
• String Functions
  • TRIM, removes spaces at the beginning and the end of a string.
  • UPPER, LOWER, put a string in upper case or lower case.
• Math Functions
  • ABS, absolute value
  • ROUND, rounds a value to a specified precision.

SELECT DISTINCT & ORDER BY

SQL query results are not truly relational:

• Rows are not guaranteed to be unique
• DISTINCT returns unique values.
• No guaranteed order.
• ORDER BY forces and ORDER (use ASC for ascending or DESC for descending).

SELECT & WHERE The WHERE clause limits the rows returned by a SELECT query. The WHERE keyword is followed by a logical predicate. In the predicate we can use:

• Comparison operators like: =, >, <, >=, <=, LIKE.
• Logical operators like: AND, OR, NOT.
• Parenthesis ().

SELECT and CASE The CASE statement has the functionality of an IF-THEN-ELSE statement.

UNION and UNION ALL The SQL UNION operator is used to combine the result sets of 2 or more SELECT statements. It removes duplicate rows between the various SELECT statements. The UNION ALL operator behaves like UNION but it doesn't remove the duplicates.

Data Query Language (DQL) - Understanding Joins Definition: Cartesian product Characteristics of a Cartesian product

• Output or intermediate result of FROM clause.
• Combine all possible combinations of two sets.
• In SQL queries, usually not desired.

JOINS A JOIN operation puts together the columns of two tables, by matching the rows based on a predicate.

CROSS JOIN

INNER JOIN

LEFT OUTER JOIN

OUTER JOINS

• Return all rows from first table, only matches from second:

• Return all rows from second table, only matches from first:

• Return all matching rows + rows from first table with no match in second + rows from second table with no match in the first:

Handling NULLs

• SQL uses NULLs to mark missing values. With no missing values, predicate outputs are TRUE or FALSE only (5 > 2, 1 = 1). With missing values, outputs can be TRUE, FALSE or UNKNOWN (NULL > 99, NULL = NULL).
• Predicates return UNKNOWN when comparing missing value to another value, including another missing value.
• Query filters (ON, WHERE, HAVING) filter out UNKONWNs
• Testing for NULL, use IS NULL or IS NOT NULL rather than = NULL or <> NULL.
• Replacing NULLS, use the COALESCE function.

Grouping and Summarizing Data Aggregate Functions

• Return a scalar value (with no column name)
• Ignore NULLs except in COUNT(*)
• Can be used in: SELECT, HAVING, and ORDER BY clauses
• Frequently used with GROUP BY clause.

Aggregate Functions

• SUM
• MIN
• MAX
• AVG
• COUNT
• STDEV
• VAR
• VARP

Group By GROUP BY creates groups for output rows, according to a unique combination of values specified in the GROUP BY clause. The WHERE clause filters the rows before the aggregation is applied.\ We use GROUP BY + an aggregate function every time we want to compute an aggregation for each of the groups. Detail rows are "lost" after the GROUP BY clause is processed.

How GROUP BY works

Filtering Aggregates HAVING clause provides a search condition that each group must satisfy. HAVING clause is processed after GROUP BY.

COUNT DISTINCT How many different customers bought placed an order?

SubQueries Subqueries are nested queries: queries within queries. Results of inner query passed to outer query.

• Inner query acts like an expression from perspective of outer query. Subqueries can be self-contained or correlated.
• Self-contained subqueries have no dependency on outer query.
• Correlated subqueries depend on values from outer query. Subqueries can be scalar, multi-valued, or table-valued.

EXISTS and NOT EXISTS When a subquery is used with the keyword EXISTS, it works only as an existence test.

• No rows passed back to outer query.

EXISTS evaluates to TRUE or FALSE

• If any rows are returned by the subquery, EXISTS returns TRUE.
• If no rows are returned, EXISTS returns FALSE.

Syntax:

Customer with at least 1 order:

Customer with No orders:

Analytical Functions Set of SQL functions for analytical tasks. Analytical functions make many SQL tasks easy. Some functions:

• ROW_NUMBER()
• LAG/LEAD
• COUNT/MIN/MAX/SUM/AVG with the OVER clause. There's no loss of details like we have with the GROUP BY operation.

ROW_NUMBER ROW_NUMBER provides a simple way to get row numbering in a result sets. The row numbers can then be used for many purposes. Syntax: ROW_NUMBER() OVER(PARTITION BY col1, col2, ... ORDER BY col1, col2, ...)

Example: find the largest order for each customer.

The OVER clause The OVER clause consists of 2 parts:

• PARTITION BY, which defines the partitioning criterion.
• ORDER BY which specifies the order we want to apply to the records inside each partition.

LAG & LEAD LAG returns a value taken from n rows before the current row. (n is a parameter). If no value is found, the function returns the specified default value. Syntax: LAG(column_name, n, default_value) OVER(PARTITION BY partition_by_cols ORDER BY order_by_cols). LEAD returns a value taken from n rows past the current row. (n is a parameter). If no value is found, the function returns the specified default value. Syntax: LEAD(column_name, n, default_value) OVER(PARTITION BY partition_by_cols ORDER BY order_by_cols).

LAG Example

Aggregation Function with the OVER Clause The OVER clause allows computing the aggregations for a partition (or for all the rows in the result set). With the OVER clause the aggregations are returned along with each single row.

Windowing In addition to PARTITION BY and ORDER BY the OVER clause allows us to specify a window of rows to which the aggregation function is applied. Keywords:

• UNBOUNDED PRECEDING, it means that the window starts from the first row (inside a partition and using the order by criteria).
• N PRECEDING (where N is a number), it means that the window starts from n rows before the current row.
• CURRENT ROW, it specifies the current row as start or end of a window.
• UMBONDED FOLLOWING / N FOLLOWING, same as above, but it refers to the following rows.

Windowing Examples

Lighting Fast Computing with Spark

Spark Apache Spark is a fast, in-memory data processing engine. APIs in Scala, Java, Python & R. Spark on Apache Hadoop YARN enables deep integration with Hadoop and other YARN enabled workloads in the enterprise. Spark powers a stack of high-level tools including Spark SQL, MLlib for machine learning, GraphX and Spark Streaming.

Spark History

• 2009: Hadoop Subproject, by AMPLab (UCLA)
• 2010: Open Source
• 2013: Apache Project
• 2016: Spark 1.6.2 & 2.0.0
• 2018: Spark 2.3.x
• 2018: Spark 2.4.x

Unified Framework

Spark scales well Some examples of real usage:

Spark Performance

What makes Spark fast?

How Spark works The Driver program contains all the instructions that Spark must execute (for example: read a file, aggregate the data, save the aggregated data to another file). In the Driver program the programmer creates the SparkSession object that takes care of:

• Connecting to the Spark cluster (it connects to the cluster manager).
• Sending the program to the cluster and make it execute.

Spark have different cluster managers:

• It can use YARN as cluster manager if Spark lives on the same cluster as Hadoop.
• It can use another Apache cluster manager (Mesos).
• Spark itself contains a cluster manager tool (standalone cluster mode).

Once the Driver program is connected to the cluster manager it sends lines of code that contain the Spark commands. The Worker Nodes (generally one for each physical node of the cluster) receive the commands and allocate one or more Executors. The Executor is a JVM service that takes in charge:

• The creation of one or more tasks that physically execute the Spark instructions.
• The allocation of enough memory to execute each task.

Executors in different Worker Nodes can exchange data if needed (Data shuffle operations). Shuffles occur when the Spark program:

• Aggregates data (data with the same aggregation key may be located in different Worker Nodes).
• Sorting data.

Architecture

Spark Distributions The Apache Spark distribution is relatively easy to install. It works on all the operating systems. There's another Spark distribution: Databricks that also provides a cloud version of Spark. Cloud services:

• Microsoft HDInsight
• Google Cloud
• IBM Blumix

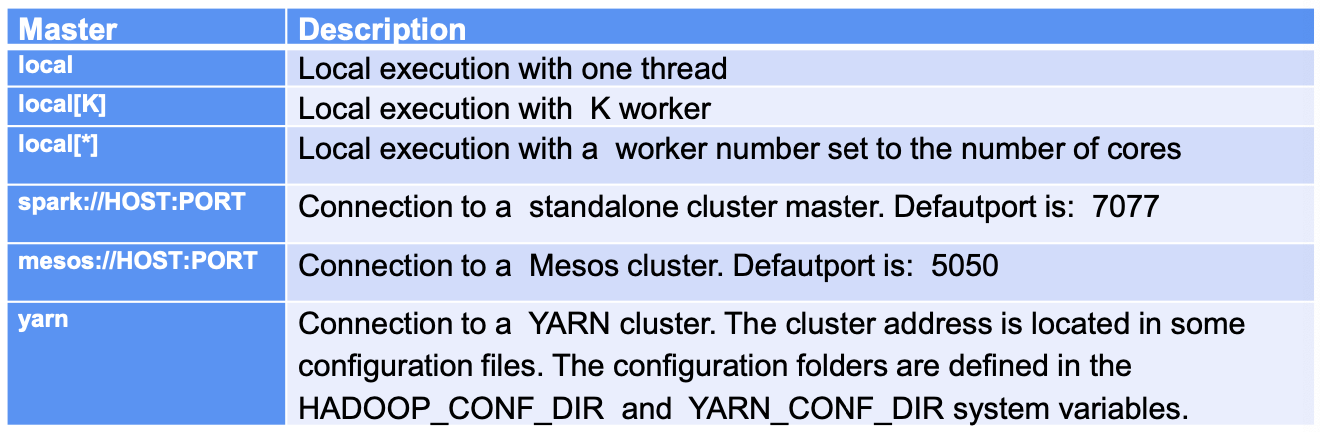

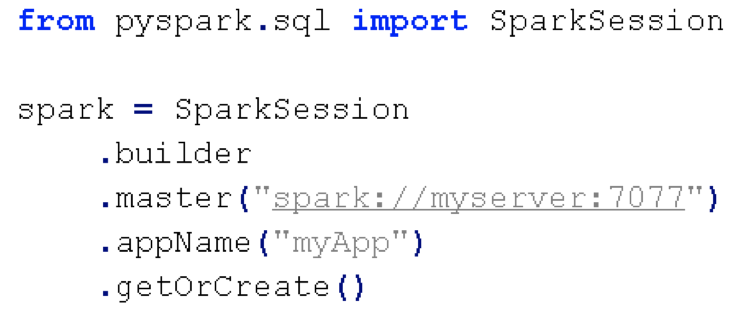

Connecting to the Spark cluster The master parameter for a SparkContext determines which cluster to use:

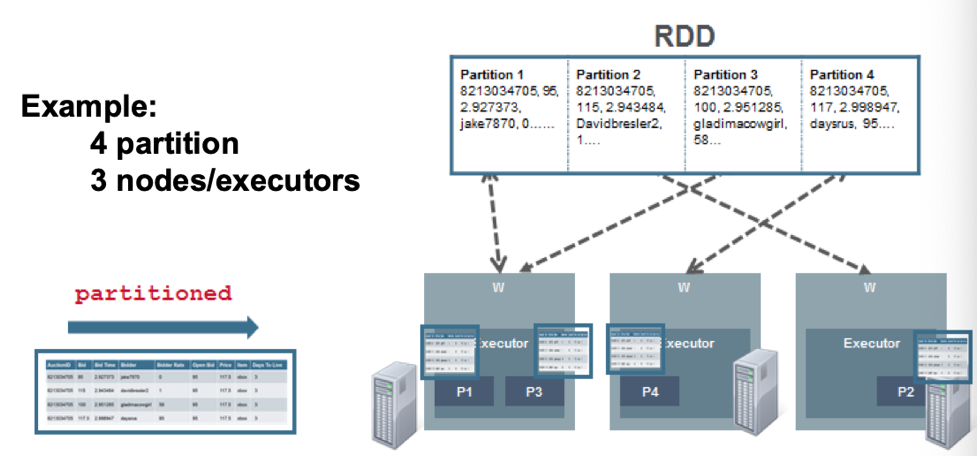

Resilient Distributed Datasets (RDD) Resilient Distributed Datasets (RDD) are the primarily abstraction in Spark - a fault-tolerant collection of elements that can be operated on in parallel.

• An RDD is comprised of partitions.
• Each partition is managed by an executor (generally one executor per node).
• Each executor can manage more than one partition of the same RDD.

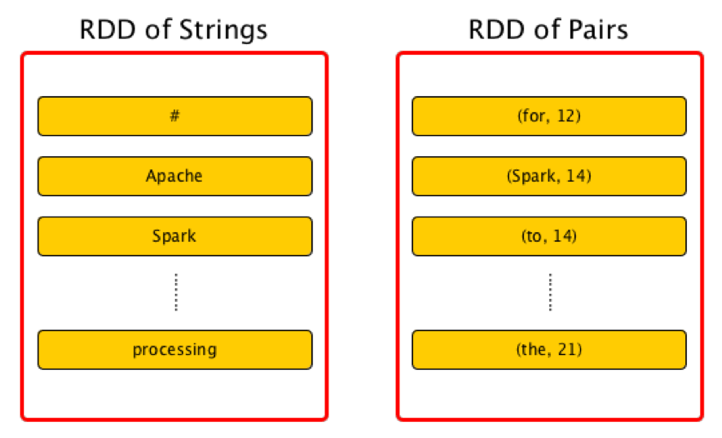

RDD Examples There are different types of RDD. For example we can have:

• RDD of strings (created when we read a file).
• RDD of pairs (key/value pairs, programmatically created).

How Spark works The RDD is an immutable collection of objects that is partitioned and distributed across multiple physical nodes of a YARN cluster and that can be operated in parallel. There are currently two types:

• Hadoop (or other FS) datasets - Typically, RDDs are instantiated by loading data from a shared file system, HDFS, HBase, or any data source offering a Hadoop InputFormat.
• Parallelized collections - take an existing Scala/Python collection and run functions n it in parallel. Once an RDD is instantiated, you can apply a series of operations. All operations fall into one of two types: transformations or actions.
• Transformation operations create new datasets from an existing RDD and build out the processing DAG that can then be applied on the partitioned dataset across the YARN cluster.
• An Action operation, on the other hand, executes DAG and returns a value. DAG = Directed Acyclic Graph. It's the execution workflow of a Spark program.

Example

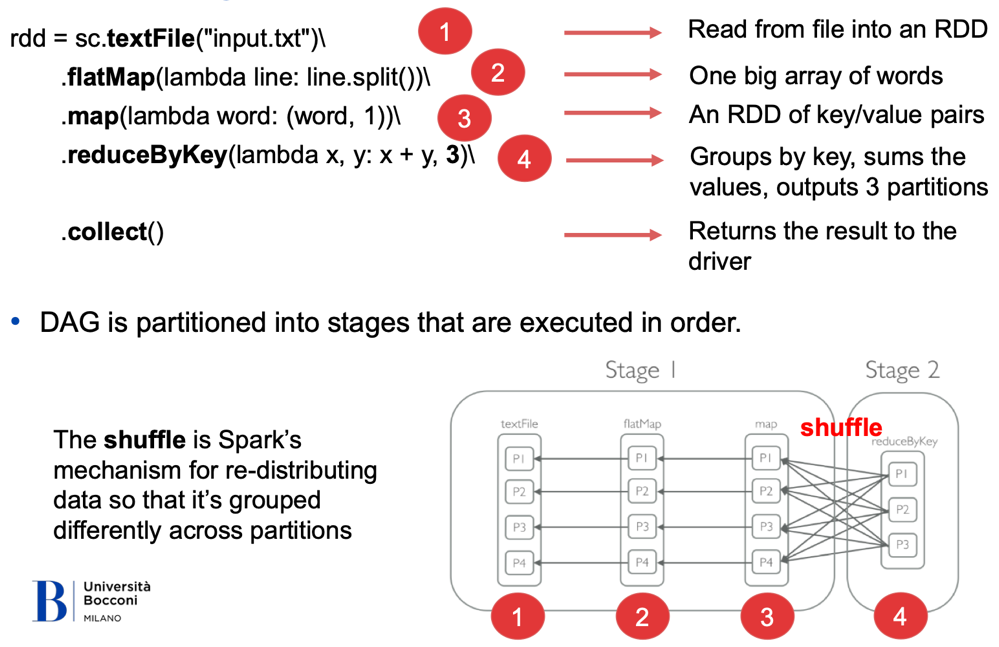

DAG, Stages & Shuffle

Spark SQL Spark SQL is a Spark module for structured data processing. It provides a programming abstraction called DataFrames and can also act as distributed SQL query engine. A DataFrame is a distributed collection of data organized into named columns.

• It is conceptually equivalent to a table in a relational database or a data frame in R/Python, but which richer optimizations under the hood.

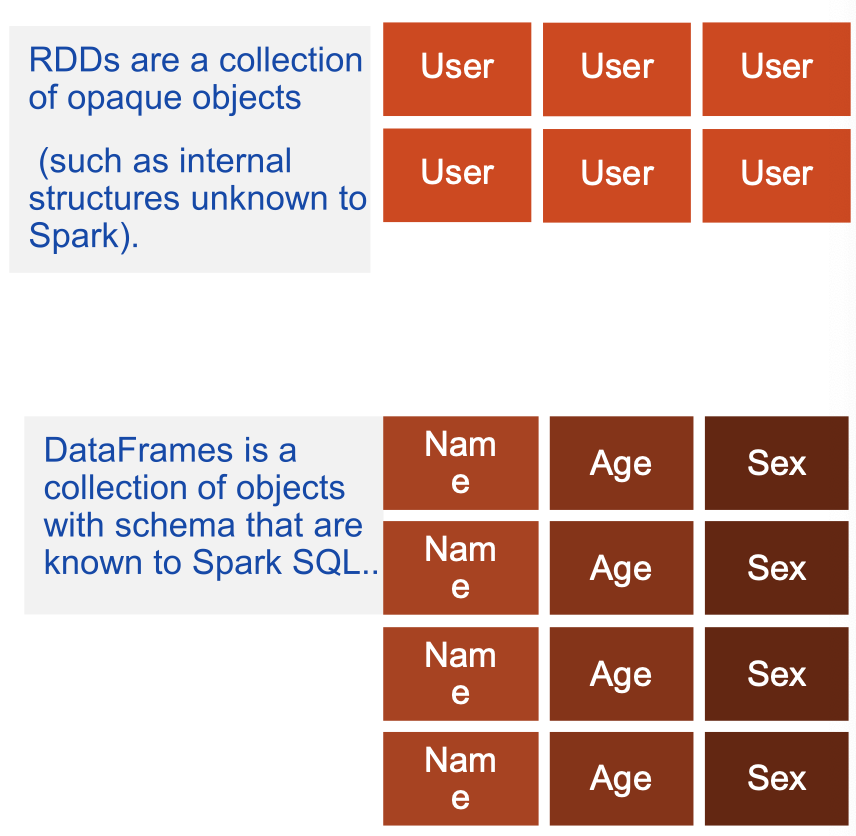

DataFrames A distributed collection of data organized into named columns. Similar to RDD with schema. Conceptually equivalent to tables in relational database, or to DataFrames in R/Python. With domain-specific functions designed for common tasks:

• Metadata
• Sampling
• Project, filter, aggregation and join.
• UDFs.

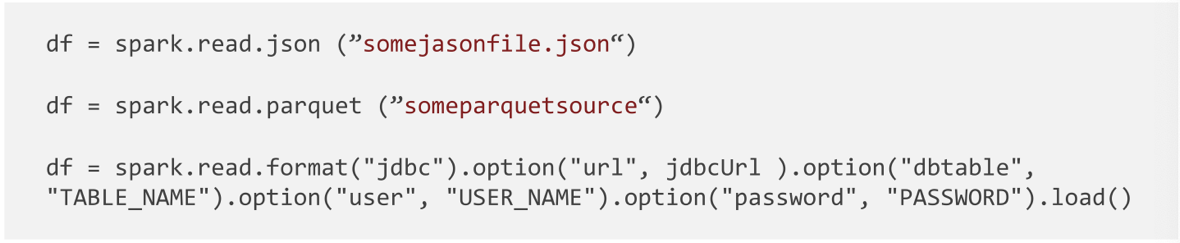

Creating DataFrames from data sources A Spark data source can read in-data to create DataFrames, which has a schema that Spark understands. Examples include: JSON files, JDBC source, Parquet (*).

(*) Parquet is an optimized file format. It contains both data and metadata (column names and data types). It stores data in an efficient columnar format.

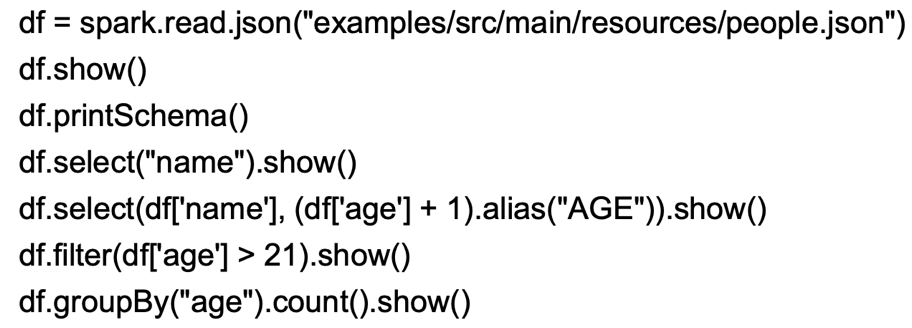

DataFrame API DataFrames provide a domain-specific language for structured data manipulation in Scala, Java and Python.

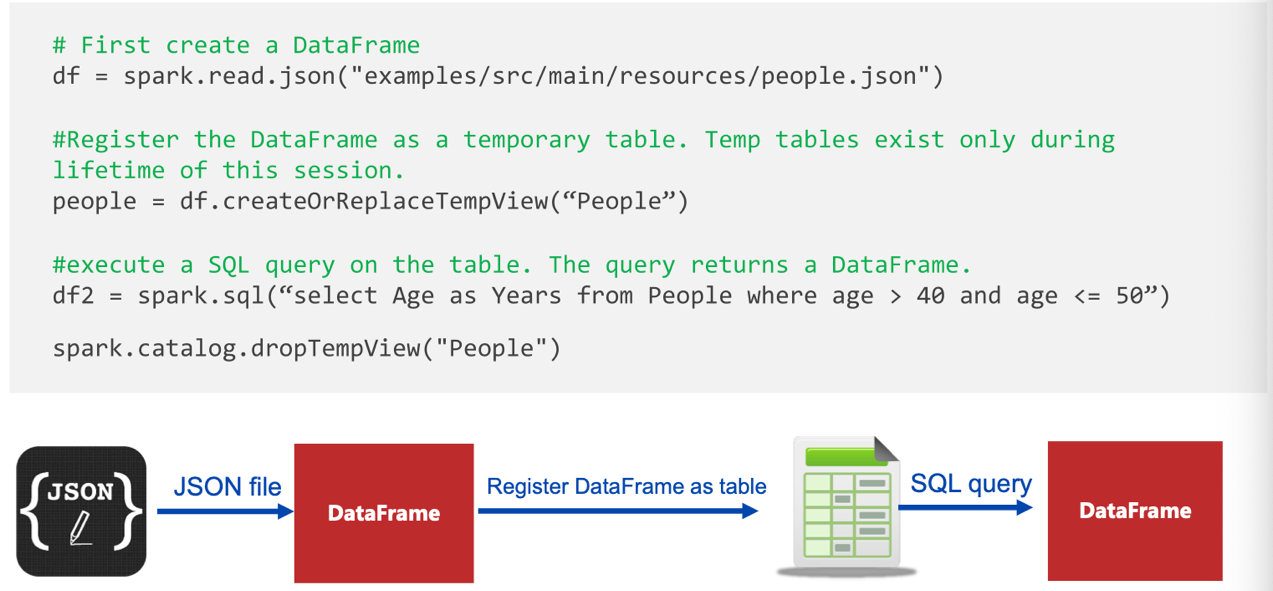

Dataframe registered as a table A DataFrame can be registered as a table that can then be used in SQL queries.

Persistent Tables DataFrames can also be saved as persistent tables into Hive metastore using the saveAsTable command.

• An existing Hive deployment is not necessary to use this feature. Spark will create a default local Hive metastore (using Derby) for you. SaveAsTable will materialize the contents of the DataFrame and create a pointer to the data in the Hive metastore. Persistent tables will still exist even after your Spark program has restarted, as long as you maintain your connection to the same metastore.

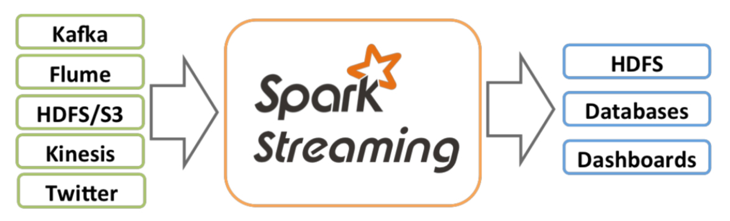

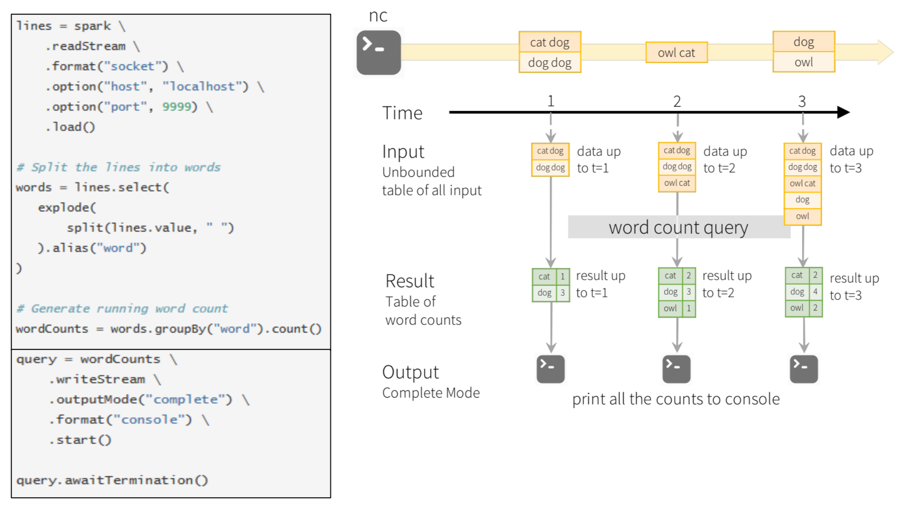

Spark Streaming

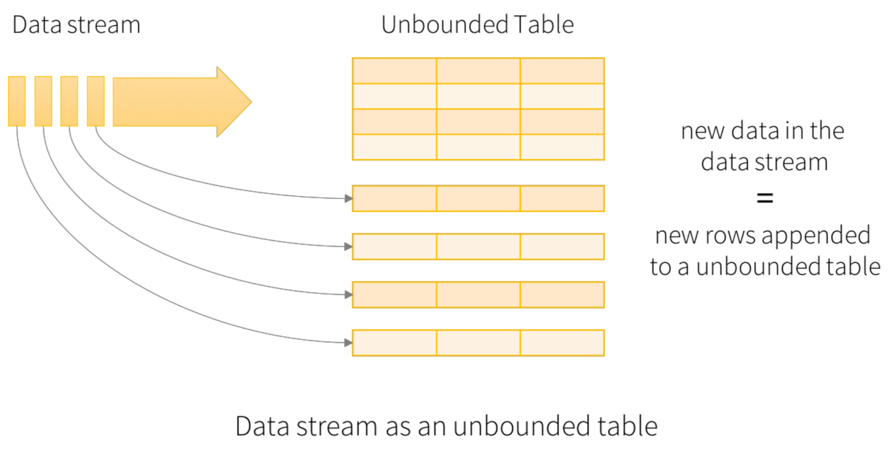

• Streaming Data is data that is continuously generated by a data source. Such data should be processed incrementally.
• Spark Structured Streaming: enables scalable, high-throughput, fault-tolerant stream processing live data streams.
  • Built on the Spark SQL engine.
  • You can express your streaming computation the same way you would express a batch computation on static data.
  • The Spark SQL engine will take care of running it incrementally and continuously and updating the final result as streaming data continues to arrive.

Streaming

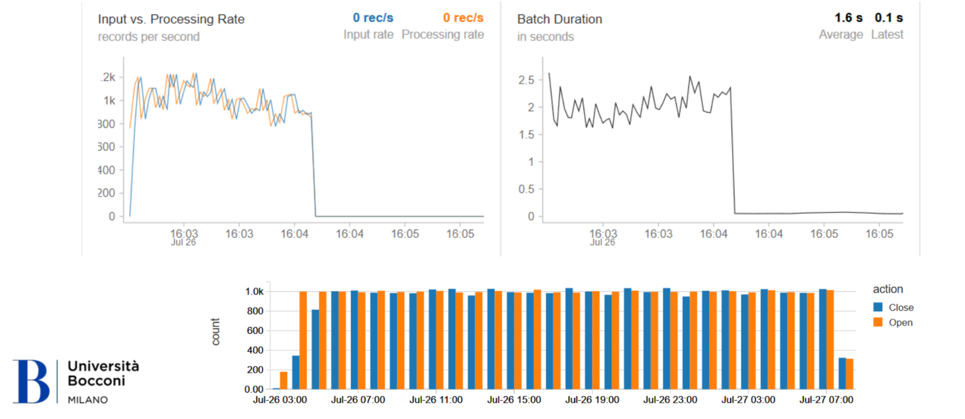

Stream Exercise

• Loading sample data.
• Perform some interactive analysis (on the static data).
• Read the files as a stream.
• Do the same analysis as in point 2.
• See the streaming result.

Spark GraphX Graphs

• The graph data structure is comprised of:
  • Nodes are the entities in the graph.
    • They can hold any number of attributes (key-value pairs) called properties.
    • Nodes can be tagged with labels, representing their different roles in your domain.
  • Relationships provide directed, named, semantically-relevant connections between two nodes.
    • A relationship always has a direction, a type, a start node, and an end node.
  • Such a graph is called Property Graph.

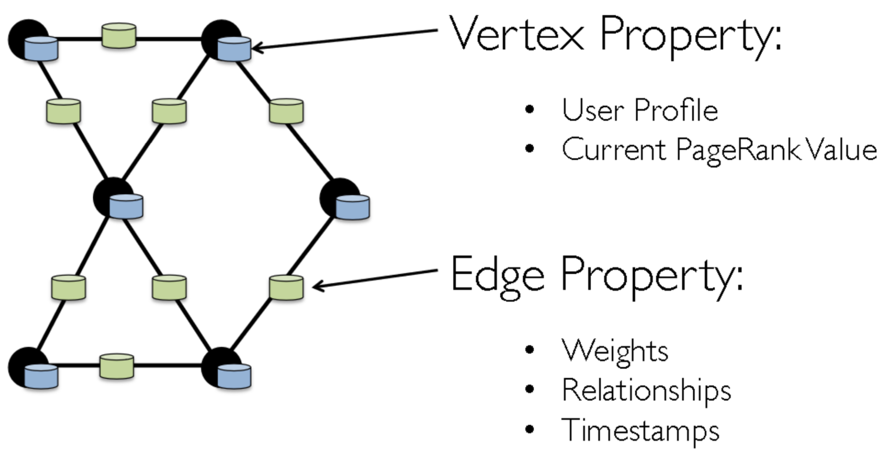

Graph X

• Graph X is a new component in Spark for graphs and graph-parallel computation.
• At a high-level, GraphX extends the Spark RDD by introducing a new Graph abstraction:
  • A directed multi graph with properties attached to each vertex and edge.
• In addition, GraphX includes a collection of graph algorithms and builders to simplify graph analytics tasks.

Built-In Algorithms

GraphX Exercise

• Load the library into the Spark environment.
• Create the graph data structures.
• Basic calculations.
• Built-in Algorithms.

Spark Machine Learning Typical ML Process

• Understand the data
• Split the data into training set and test set
• Prepare the data
  • Data cleansing
  • Specific data preparation for the algorithms
    • Normalization
    • Conversion of categorical variables to numerical variables
• Train the algorithm using the training set
• Test the model on the test set

Spark MLlib is Spark's machine learning library. Its goal is to make practical machine learning scalable and easy. MLlib tools:

• ML Algorithms: common learning algorithms such as classification, regression, clustering, and collaborative filtering.
• Featurization: feature extraction, transformation, dimensionality reduction and selection.
• Pipelines: tools for constructing, evaluating and tuning ML workflows.
• Utilities: linear algebra, statistics, data handling, etc.

Spark ML Algorithms Regressions:

• Linear Regression
• Generalized Linear Regression
• Decision Tree Regression
• Random Forest Regression
• Gradient-boosted Tree Regression
• Survival Regression
• Isotonic Regression

Classifications:

• Logistic Regression
• Decision Tree Classifier
• Random Forest Classifier
• Gradient-boosted Tree Classifier
• Multilayer Perceptron Classifier
• Linear Support Vector Machine
• One-vs-Rest Classifier (a.k.a One-vs-All)
• Naïve Bayes

Clustering & Other Supervised Algos:

• K-Means
• Latent Dirichlet Allocation (LDA)
• Bisecting K-Means
• Gaussian Mixture Model (GMM)

Recommendation System:

• Alternating Least Squares (ALS)
• FP-Growth
• PrefixSpan

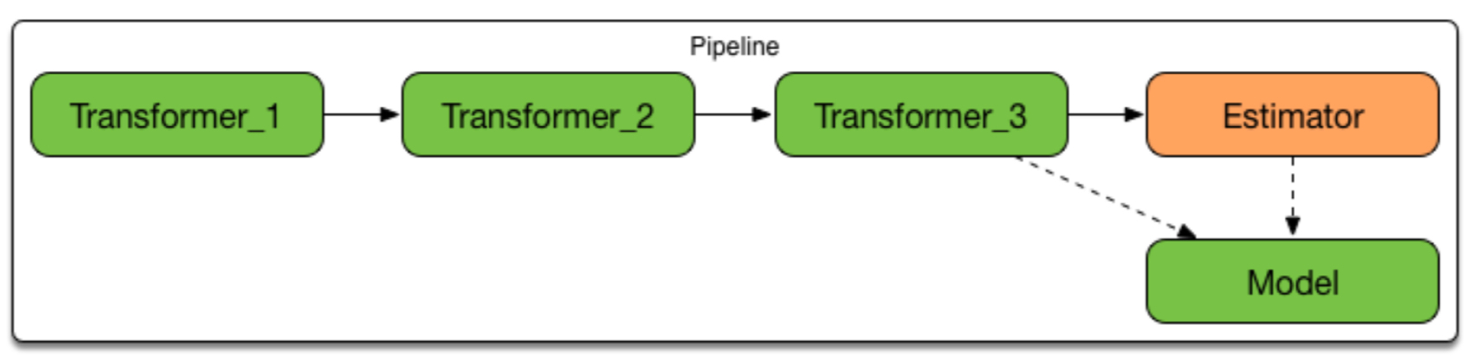

Spark ML Pipeline ML Pipeline API lets Spark users quickly and easily assemble and configure practical distributed Machine Learning pipelines by standardizing the APIs for different Machine Learning concepts. The nice thing of using Spark ML is that the ML Dataset is simply a DataFrame.

Pipeline Components A transformer is a ML Pipeline component that transforms a DataFrame into another DataFrame:

• OneHotEncoder
• Binarizer
• Tokenizer

An estimator is an abstraction of a learning algorithm that fits a model on a dataset.

• An estimator fits a model to the input DataFrame and ParamMap to produce a Transformer (a Model) that can calculate predictions for any DataFrame - based input datasets.

An evaluator is a transformer that takes DataFrames and computes metrics indicating how good a model is.

• BinaryClassificationEvaluator
• MulticlassClassificationEvaluator
• RegressionEvaluator

Spark ML Exercise Example 1 - Logistic Regression

• Creating a toy dataset
• Creating the pipeline
• Training the model
• Evaluating against the test set

Example 2 - Linear Regression

• Loading sample data
• Exploring the data
• Creating the pipeline
• Training the model
• Evaluating against the test set.

Big Data Architectures - Integrating the Big Data Tools in the Company's Information System

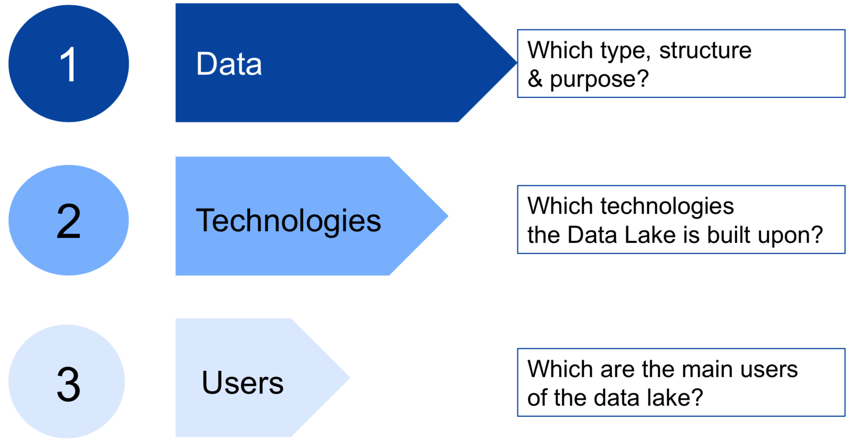

Data Lake "A data lake is a collection of storage instances of various data assets additional to the originating data sources. These assets are stored in a near-exact, copy of the source format. The purpose of a data lake is to present an unrefined view of data to only the most highly skilled analysts, to help them explore their data refinement and analysis techniques independent of any of the system-of-record compromises that may exist in a traditional analytic data store (such as a data mart or data warehouse)".

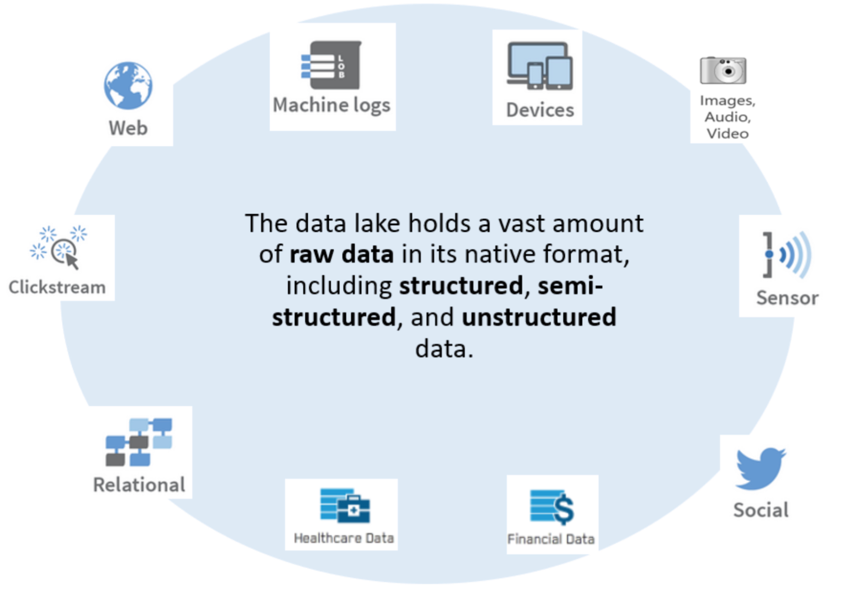

Raw Data

Processed Data The data lake also contains a vast amount of processed (and/or semi-processed) data.

Technologies The Data Lake is mostly based on Hadoop & Spark.

Users

Data Lake Rezzani's Definition:

• A data lake is a repository that holds:
  • A vast amount of raw data in its native format, including structured, semi-structured and unstructured data.
  • A vast amount of processed (and/or semi-processed) data.
• The data structure and requirements are not defined until the data is needed (schema on read).
• The data lake provides data for as reporting, analytics and machine learning tasks.
• The data lake is mostly based on the Hadoop & Spark platforms.

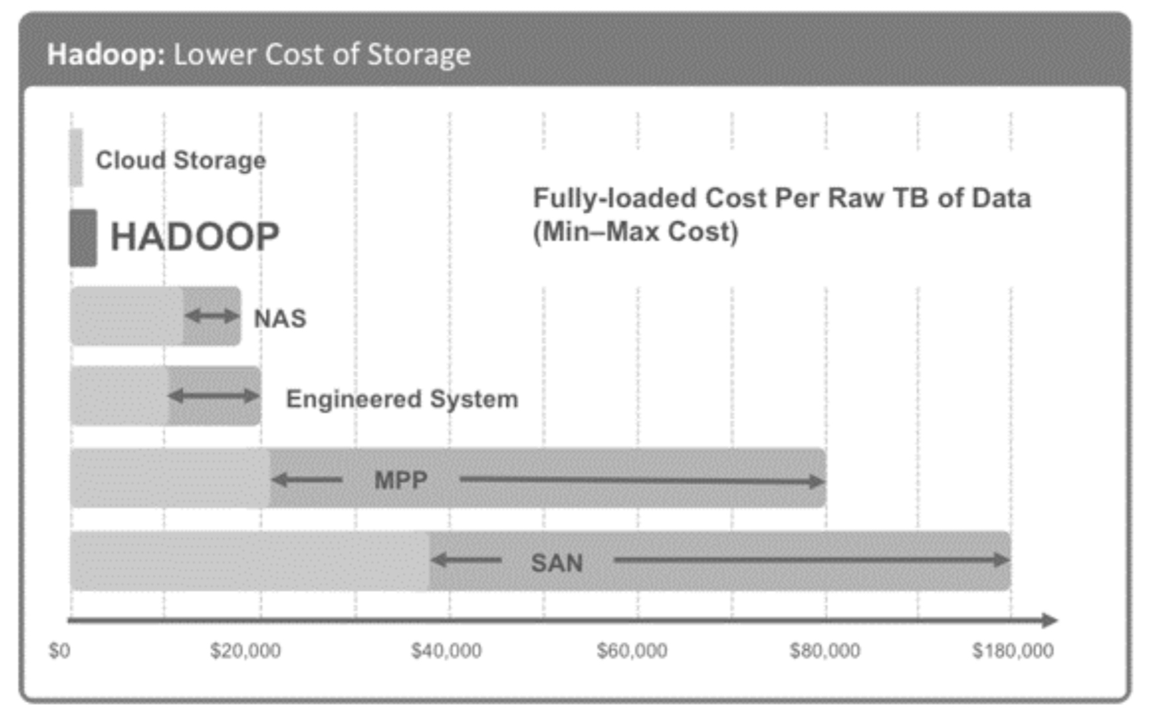

Low Cost Repository

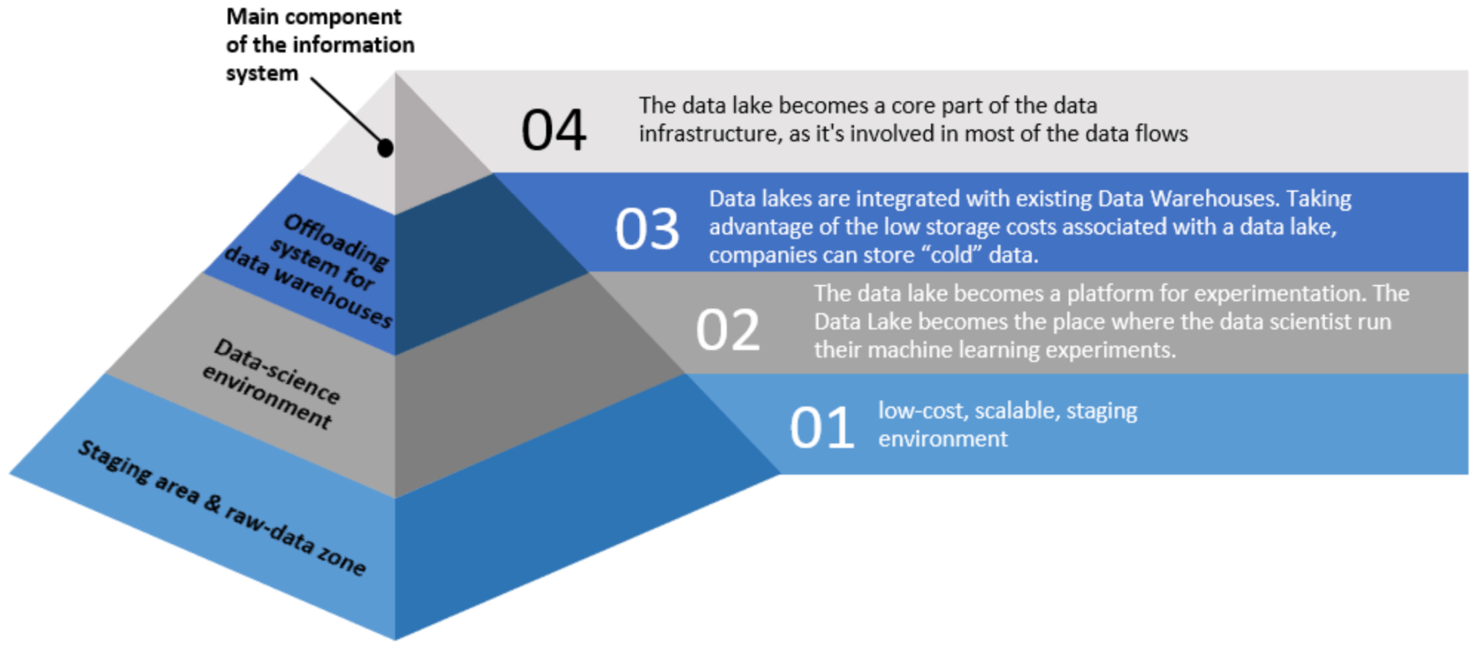

Four steps of the Data Lake adoption

• Staging area & raw-data zone. At the first level, the data lake can separate collect data from operational systems and servers as a low-cost, scalable, staging environment.
• Data Science Environment. As a second step, companies may start to use the data lake as a platform for experimentation. The Data Lake becomes the place where the data scientist run their machine learning experiments.
• Offloading system for data warehouses. As a further step, data lakes are integrated with existing Data Warehouses. Taking advantage of the low storage costs associated with a data lake, companies can store "cold" (rarely used) data.
• Main component of the information system. The data lake becomes a core part of the data infrastructure, as it's involved in most of the data flows.

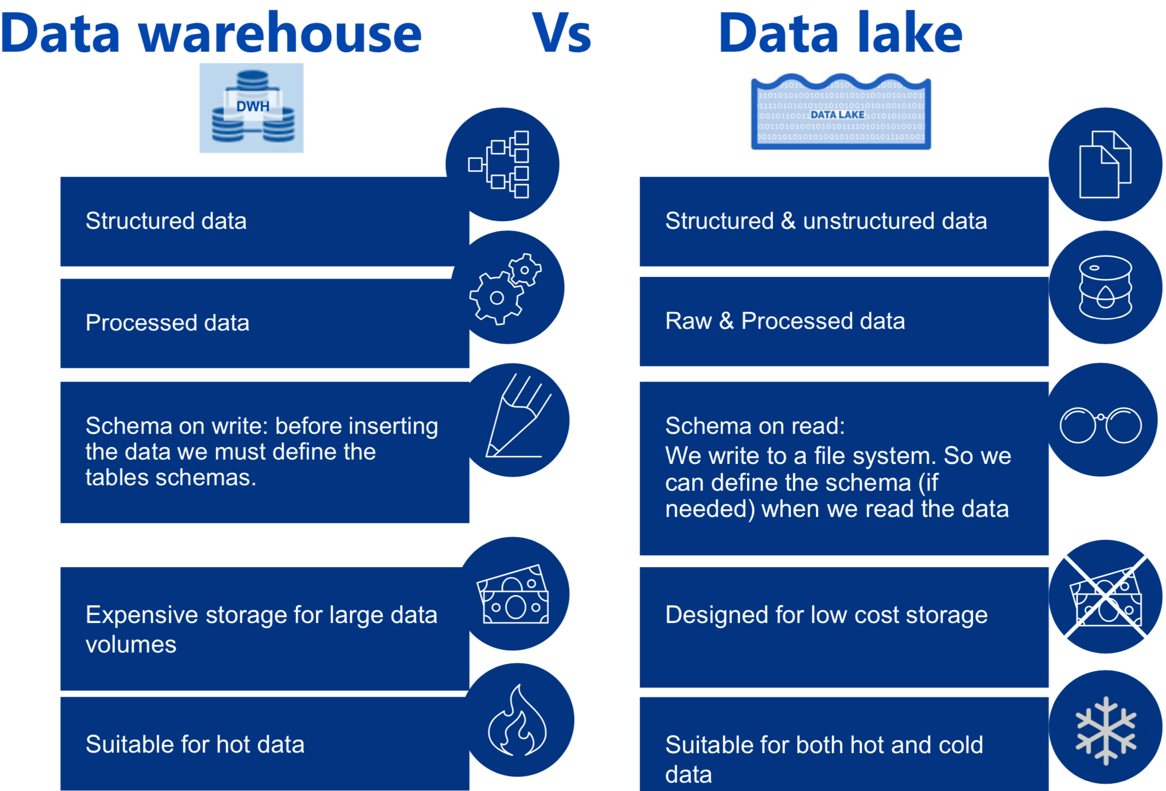

Traditional Business Intelligence vs Data Lake

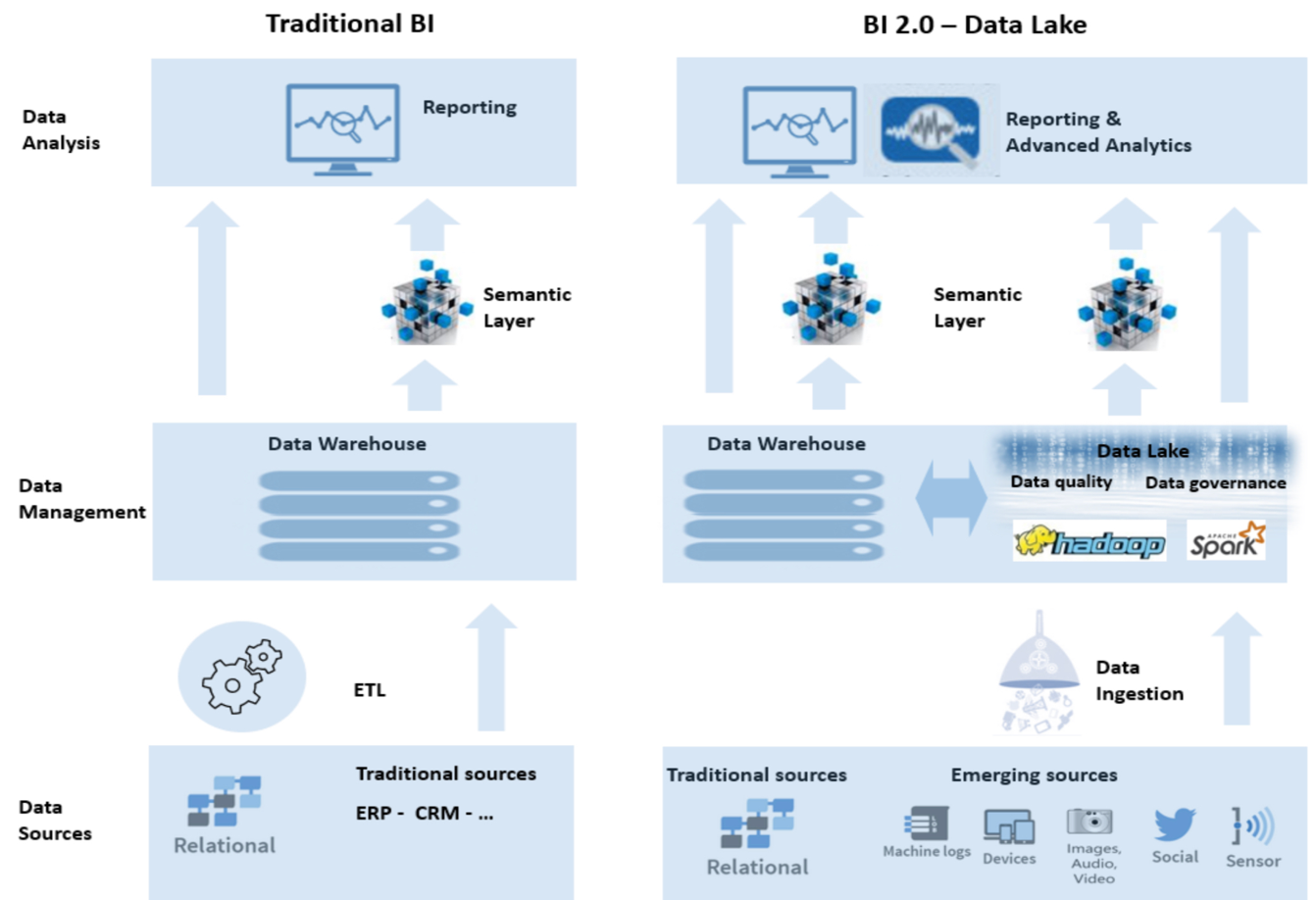

Data Lake Architecture: Data Flows Data from the traditional sources can still be processed by the ETL processes, but some (or all) the ETL procedures could moved to the data lake (DL).

• So the DL becomes the repository of raw data and the place where some ETL transformations happens. Data from the new sources go directly to the DL.
• Those data can be processed or used in complex analytical tasks (like machine learning).
• And, once we get the results, they can be moved to the data warehouse.

Data Lake Architecture: the DWH Role The data warehouse still exists. It contains:

• The "hot" data coming from the ETL processes (whether they grab the data directly from the sources or from the DL).
• The "distilled" data coming from the analytical processes that run over the data lake. The data warehouse allows for low-latency (interactive) queries. It's part of the Business Intelligence system that still carries out its job in the data lake era. Keeping the data warehouse means preserving the querying performances and all the reporting systems that are built on top of it.

Data Lake Architecture: the DL role The data lake contains:

• (All) the raw data, both structured and unstructured.
• The final processed data (which are structured)
  • Some of those data is pushed to the data warehouse (the hot data).
  • The "cold" data are stored in the data lake and are available with a longer latency. It eventually takes care of all the data transformations (ETL + Analytical tasks). In the DL we can store more data: more details + greater historical depth. Supplies data:
• To the data warehouse.
• To the Data Scientists. The data scientists can use both the raw and the processed data to build both descriptive reports and predictive models.
• To the applications. The data lake could provide data services for corporate applications.

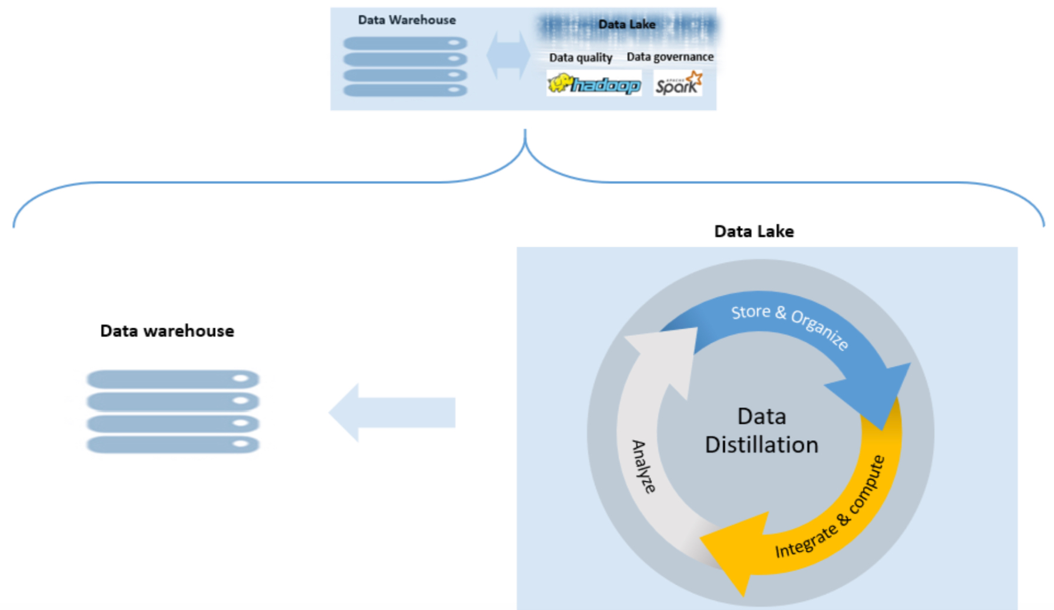

Data Lake Architecture: Data Distillation The data lake allows more detailed and more complex analysis on a larger amount of data. Often the results of the computations are small enough to be transferred to the Data Warehouse. So, the results are injected in the Business Intelligence workflow.

Critical Success Factors for the Data Lake A big data lake will take whatever data you give it, and that's going to be a problem. How to address it?

• Data Governance
• Data Quality Process Many users with different profiles and needs may access the Data Lake. How can we make the usage easy for any user profile?
• Metadata management (part of the Data Governance)
• User skills improvement (i.e., training)
  • Data Scientists
  • End Users

Data Governance Policy

• Data Sources mapping (applications, input services)
• Data Flows mapping: How data is loaded into the Data Lake?
• Output services mapping:
  • Data Warehouse
  • Applications
  • Output Data Services
• Metadata Management: the Metadata make it easy to search for data and to interpret the content of the data lake.

Data Quality Process The data quality rules should be applied on the output data. If we apply data quality filters on the input data, we would prevent some data to enter the data lake.

• Data that have a medium quality level could be useful for certain applications. The best way to proceed is putting a "quality label" to the data and let the final user decide whether or not to use it.

Big Data Business Applications

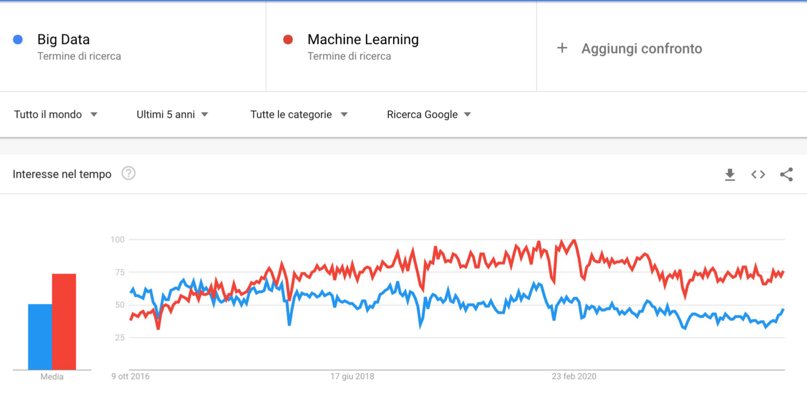

The Big Data Phenomenon (In the World)

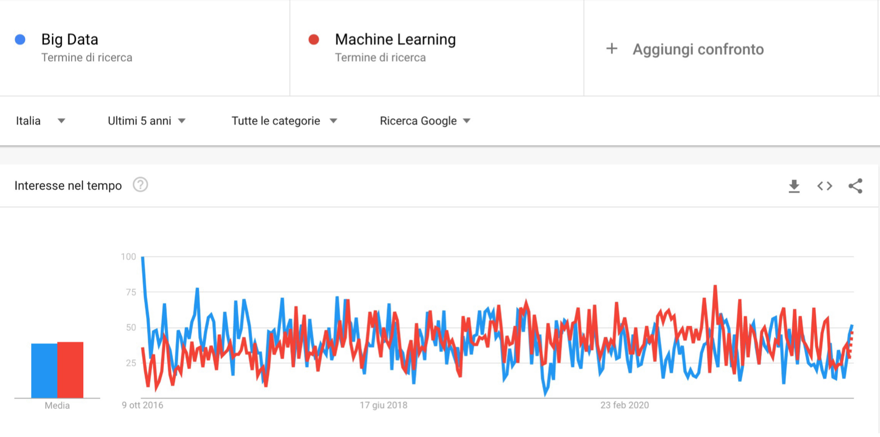

The Big Data Phenomenon (In Italy)

"Traditional" Data Sources Operational sources referring companies daily operational activity:

• Software for production management
• Software for purchasing management
• Software for orders and deliveries management
• Software for accounting
• Software for personnel management
• Software for customer management
• Software for back-office management
• Software for financial instruments management and measurement

"Emergent" Data Sources Next to the data produced by management software's there might be systems closer to the production that generate huge amounts of data:

• DCS (Distributed Control System) computer systems for the control of industrial installations. Generate data on the state of the installations through sensors connected to the components running measurements at very small intervals.
• Data generated by scientific equipment for measurement and analysis
• Data generated by medical and diagnostic equipment
• High Frequency Trading Systems
• Web 2.0: Blog Posts, Tweets, Facebook comments & likes, images & videos
• IOT: Internet Of Things

Type of Data

"Classical" definition of Big Data Data with three characteristics:

• Volume (Large amounts of data)
• Variety (Variety of structures, data types, sources, Structural Complexity and Unstructured or semi-structured data)
• Velocity (The speed with which they are produced

The other 2 V's of the classic definition

• Value (It expresses a result of the use of big data: the ability to generate value)
• Veracity (It expresses critical issues: not everything that is on the internet or in the corporate data assets is trustworthy!)

Estimations There are certain estimates that see by 2025, the set of all the data digitally created and consumed in a year (books, videos, music, etc.), it will be equal to 180 Zettabyte. Other estimates say 160 Zettabyte for 2025 (IDC).

But do we have to analyze them all? Let's clarify The name "Big" Data, the traditional definition and some publications, are misleading. The Big Data is not only the data with large volumes. They come from the Web, but also from other sources (both new and traditional). The impressive numbers which are found in the statistics they refer to the data created throughout the world, we hardly need to use them all...

Big Data Definition Big Data is a new concept of potential Business knowledge that leverages on today variety of data formats and sources, on improved data velocity and, thus, on today increasing data volume, to generate new insights previously considered beyond our capability and to find new business value by using proper enablers.

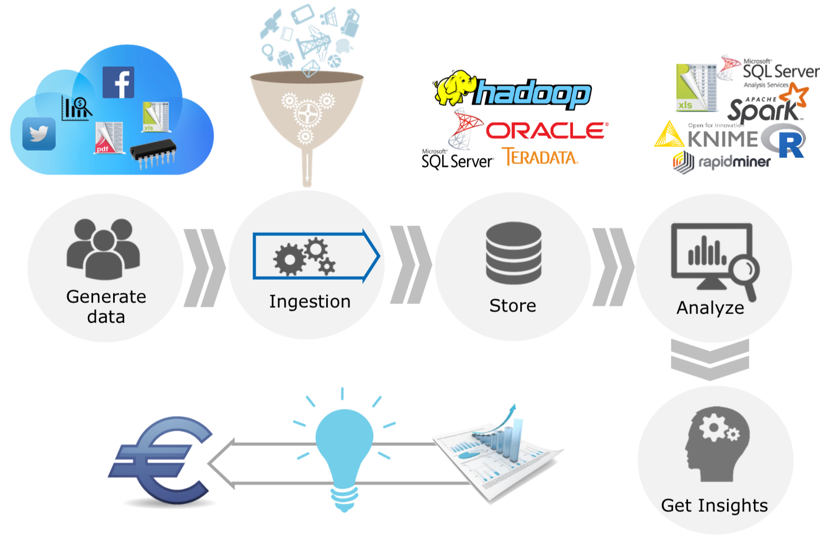

Big Data Framework

An alternative definition (more technical) The Big Data are: Data that cannot be analyzed on a single machine or that is not convenient to analyze through traditional technologies (hw or sw). Can then be: Data with such volumes that the analysis on RDBMS is impossible or very costly Unstructured data difficult to keep in an RDBMS. Data that may need sophisticated analytical techniques to extract value, although this is not always true. Data that arises both structured and unstructured (or semi-structured). However: unstructured data (or semi-structured) must be processed and placed in the form of structured data, before it can be analyzed.

IOT (Internet Of Things) Network of objects containing electronic parts, software, sensors and connectivity. They add value to the product or service: exchange data with the producer and with other connected devices. Interact through the Internet.

IOT & Smart Cities

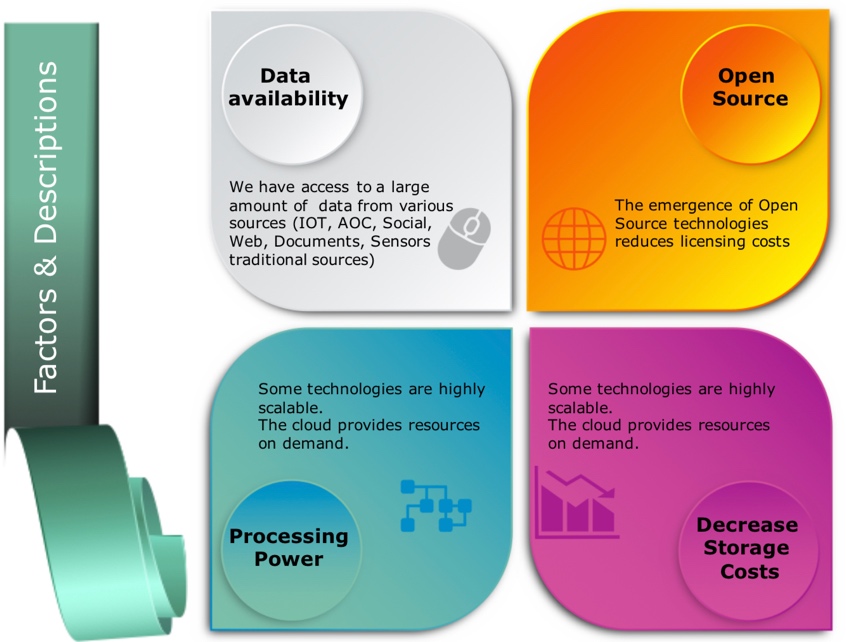

Big Data Phenomenon: Triggers

Analysis Process

Example of Big Data Applications in Business

• Reduce Time To Market
  • Introducing new products or services involves many life cycle stages, some of which are easier to accelerate than others; for the past couple of decades, drug manufacturers have been using clinical trial simulations to speed learning, reduce costs, and limit unnecessary burdens on patients participating in the trials.
  • Armed with the power of the cloud and big data, the clinical trial simulations can be done faster in ways that benefit the manufacturer and patients.
  • Bristol-Myers Squibb reduced the time it takes to run clinical trial simulations by 98% by extending its internally hosted grid environment into the AWS Cloud; the company has also been able to optimize dosing levels, make drugs safer, and require fewer blood samples from clinical trial patients.
  • As a result of the move, Bristol-Myers Squibb was able to reduce the number of clinical trial subjects in a pediatric study from 60 to 40, while shortening the length of the study by more than a year.
• Optimize The Workforce
  • Some HR departments are using talent analytics and big data to reduce costs and effectively manage workforce-related issues.
  • The data allows them to select new hires that are a better fit for the company, reduce employee turnover, understand the skills and output of the existing workforce, and determine the talent life the company needs moving forward.
  • Xerox used big data to reduce the attrition rate in its call centers by 20%: to do that, it had to understand what was causing the turnover, and determine ways to improve employee engagement.
• Improve Financial Performance
  • Corporate finance departments are moving beyond periodic reporting and BI, using big data to reduce risks and costs, identify opportunities, and improve the accuracy of forecasts: specifically, they're using data to identify risky customers, monitor suppliers, thwart fraud, pinpoint revenue leaks, and inform new or more efficient business models.
  • A recent partnership between The Weather Company and IBM will allow companies to better manage the impact of half a trillion dollars annually in the US alone.
  • The weather data is being collected from more than 100,000 weather sensors and aircraft, as well as millions of smartphones, buildings, and moving vehicles; that data is combined with data from other sources to yield 2.2 billion unique forecast points, and an average of more than 10 billion forecasts on an active weather day.
  • Retailers will be able to use the data to adjust staffing and supply chain strategies. Energy companies will be able to improve supply and demand forecasting. Insurance companies will be able to warn policy holders of severe weather conditions, so they can minimize the possibility of car damage in the event of a hail storm, for example.
• Sell Intelligently
  • Slight modifications to sales and marketing strategies can have a profound effect on the bottom line, especially when informed by big data.
  • Imagine a direct mail campaign with a coupon return rate of more 70% within six weeks of the mailing: according to the Direct Marketing Association, the average direct mail return rate is 3.7%.
  • How does grocery store chain Kroger do it? For one thing, it personalizes its direct mailer based on the shopping history of the individual customer; Kroger also has a loyalty card program that is rated No. 1 in the Grocery industry.
  • More than 90% of its customers use its loyalty card wen they purchase products; although there are many factors that have collectively enabled Kroger'S financial performance, at least part of its continued worth over 45 consecutive quarters has been attributed to its customer loyalty programs.
• Minimize Equipment And Asset Failures
  • Businesses want to avoid unnecessary disruption and customer angst.
  • Now that sensors are being embedded into just about everything, companies are using the data to determine when maintenance is required for planes, trains, automobiles, and even household appliances.
  • Ideally, when an issue has arisen, companies want to understand the issue, what caused it, and how it can be resolved, preferably before a maintenance professional or crew is dispatched.
  • Pratt&Whitney, a unit of United Technologies Corp., is attempting to reduce unplanned aircraft engine maintenance. According to AirInsight.com, today's engines collect about 100 parameters in multiple snapshots while a plane is in flight. By comparison, a new-generation engine is able to collect about 5,000 parameters continuously in flight. The process generates about 2 petabytes of data. Using the data, Pratt&Whitney and its partner IBM are trying to enable proactive maintenance.
• Leverage Customer Lifetime Value
  • Today's empowered customers are more demanding and fickle than ever: maintaining or increasing market share requires businesses to understand as much as possible about their customers, continually improve their products and services, and be willing to adapt their business models to reflect the actual needs of their customers.
  • Avis Budget has committed to doing all of this. It implemented an integrated strategy to increase market share, which has yielded hundreds of millions of dollars in additional revenue: the initiative involved determining the value of customers, segmenting them, and offering tiered incentives to improve customer loyalty.
  • To do this, its IT partner CSC applied a model that predicts lifetime value to Avis Budget's customer database, and then validated it using a multichannel marketing campaign and accompanying analytics; the customer valuation data is now combined with other data, including rental history, service issues, demographics, corporate affiliation, and customer feedback.
  • Avis Budget is also collecting and analyzing social media data: it has a team of social media specialists who respond to brand mentions.
  • The company recently updated its website to further improve customer experiences, and it is using big data to forecast regional demand for fleet placements and pricing.

Data Preparation for Predictive Modeling

Data Exploration and Data Preparation The phases of exploration, cleaning and preparation of the headset can cover the 70% of the total time of a data mining project. The steps are summarized as follows:

• Identification Of Variables
  • First we need to identify the variables Predictors (Inputs) and Target (Output).
  • Secondly, we must recognize the type and level of data measurement, example:

• The variables in the previous slide table may be reclassified as follows:

• Univariate Analysis
  • In this phase the variables are analyzed one at a time.
  • The type of analysis depends on the nature of the variable> categorical or numerical/continuous.
  • For numerical/continuous variables, you must first understand the values of central tendency and variability:

• Univariate analysis is also useful to highlight missing and outlier data, which will be discussed specifically later.

• For categorical variables, frequency tables will be used to understand the distribution of each category (values and absolute or percentage frequencies); the bar chart can be used as a graphic representation.

• Bivariate Analysis

  • The bivariate analysis shows the relationship between two variables.
  • In this case we try to evaluate whether there is an association or independence between the variables, considering a specific significance level.
  • We can perform bivariate analysis for any combination of categorical and numerical/continuous variables.
  • The combinations can be:
    • Categorical vs categorical
      • In this case we use a contingency table and stacked bar charts.
      • With contingency tables, we analyze the absolute or percentage joint frequencies of the observed values of the two variables; on the rows we will find the categories of a variable and on the columns the categories of the second variable.
      • The stacked column chart enables a visual representation of the relationship.
      • The significance test used is the chi-square, and to examine the strength of the relationship using indices such as the V Cramer.
    • Categorical vs numerical/continuous
      • In this case, we typically use box plots of the numeric variable for each level of the categorical variable.
      • To verify the significance of the relation, we can use the t-test, if the number of the qualitative categories is equal to 2, or F-Test if the number of categories is greater than 2.
    • Continuous vs continuous
      • In this case you use a scatter diagram and the linear correlation coefficient, to find the strength of the relationship.
      • The correlation varies between -1 and +1.
        • -1: Perfect negative linear correlation.
        • +1: Perfect positive linear correlation.
        • 0: No correlation.
  • Several methods are used to analyze these combinations during the data preparation process.

• Missing Data Management

  • The presence of missing data in the training dataset may reduce the fit and predictive ability of the model, possibly leading to incorrect forecasts and mis-classification.
  • Missing values consequences on predictive models:
    • Considering the precedent tables, in the left-wing scenario, we did not treat missing values.
    • The inference from this dataset is that the ability of males to play cricket is equivalent to that of females.
    • If you look at the second table, showing data after treatment of missing values (based on gender), we can see that females are more likely to play cricket than males.
  • Missing values Sources:
    • The origin of the missing data can be essentially linked to two stages of the process:
      • Data Extraction
      • Data Collection
    • Considering the first stage mentioned, we should conduct a double check in the extraction stage, possibly using the "data type guardians software" and/or using transformation of the extracted strings procedures (hashing procedures) that help to eliminate or minimize such extraction errors.
    • As for the second one, the problems are certainly more complex and they can have various configurations.
  • Missing values Configurations:
    • Completely Random Missing, in this case, the probability of having a missing data is identical for each observation.
    • Random Missing, in this case, the presence of missing data in a variable is random, but has a relationship with other input variables (ex. The missing data in the age variable is more common for women than men).
    • Missing that depend on Predictors Not Observed, in this case, the missing data are not random, but depend on a variable that has not been inserted in the database. Ex. If in a clinical study a diagnostic procedure may cause discomfort in some patients, they may leave the study prematurely, generating a non-random missing profile, unless we iontroduce the "uncomfortable" missing variable to control themselves.
    • Missing that depend on the Same Value of the Variable, in this case, the probability of missing depends on the missing value in itself. Ex. Who has a low income tend to not declare their income in a survey.
  • Missing value How To Process:
    • Deletion of Missing Data, there are two ways of deleting missing data: Listwise or Pairwise
      • In Listwise deletion, the entire observation that contains the missing data is deleted. Clearly it is the easiest approach to the database clean, but it has the disadvantage of markedly reduce the sample size.
      • In the Pairwise deletion, any statistical analysis is calculated with all the valid cases present in each variable, eliminating the observation only if one of the variables involved containts a giving missing. The advantage is to preserve degrees of freedom, the disadvantage is that the sample size may be different for different variables involved in the analysis.

This type of deletion is used when missing data are totally random, otherwise we could invalidate the predictive ability of the model.

• Assignment with mean / mode / median: this approach replaces the missing data with estimated values. The objective is to use the relationships between variables in the dataset to estimate as accurately as possible the missing data itself. The mean and median are used for numeric data, the mode for categorical data:
  • Generalized replacement, in this case we calculate the mean or median for all valid data available and replace all missing data with these values. For example in the table above the average of valid cases for Manpower is 28,33 and then the missing data is replaced with that value.
  • Similarity replacement, in this case, we calculate separately the average of Labour for men (29.75) and women (25) and replace missing values taking into account the genre to which the observation with missing data relate.
• Building Predictive Models, the setup of a forecasting model is one of the most sophisticated method for handling missing data: it creates a predictive model to estimate the values that will replace the missing data.

In this case, the interested data are divided into two groups: a set without missing values for the investigated variable and another with missing values: the first dataset becomes the set of the model training data, while the second set with values missing is set as test data, and therefore the variable with missing values are treated as target.

• Predictive Models, a model is then estimated to predict the target variable based on other attributes of the training dataset and to populate the missing values of the target variable; the techniques used are regression, ANOVA, logistic regression and various other modeling techniques.

There are two disadvantages in this approach:

• The model estimated values are usually more regular than the true values.
• If there are no relationships between the variables in the dataset and the data with missing values, the model will be inaccurate in estimating missing values themselves.
• Recording with KNN Neural Network, with this allocation method, the missing attribute values are calculated using the similarity pattern between the observations of several variables, on the basis of an appropriate distance function between those patterns; the missing value of a variable is therefore replaced with the "closer" valid value. The advantages of the method:
  • It can be used interchangeably to qualitative and quantitative variables.
  • It is not necessary to build a predictive model for each attribute.
  • We can treat cases with missing values of a different nature.
  • It is considered the structure of correlation between the variables.

The disadvantages are related to the computational difficulty of large datasets and the sensitivity of the model parametrization.

• Outlier Treatment
  • Outliers Definition
    • Outlier detection is commonly used by analysts and data scientists; the problem of outliers needs a lot of attention, otherwise you can get the production of heavily wrong estimates in predictive models.
    • An outlier is an abnormal value, an observation that appears distant and deviates from a typical pattern of a given sample.
    • Example: customer profiling, it turns out that the average annual income of customers is $0.8 million, but two customers have annual incomes of $4 and $4.2 million. These two clients have therefore an annual income much higher than the rest of the population and will be seen as outliers.
  • Outliers Types
    • Outliers can be of two types: univariate and multi variate. In the slide before, we discussed the example of univariate outliers. These outliers can be found by observing the distribution of a single variable, and multivariate outliers are outliers in a n-dimensional space. In order to detect them, the multi-dimensional distribution must be examined.
    • Example, here we can observe the univariate and bivariate distribution for height, weight. Looking at the box plots, we have no abnormal value (above and below 1.5 * IQR, the most common method). Instead, looking at the scatter plot we notice two lower and one higher than the average values in a specific segment of the weight and height.
  • Outliers Origins
    • Data Entry Errors, human errors, such as errors caused during data collection, recording, or inputs can generate atypical values in the same data.
    • Measurement Error, is the most common source of outliers. It occurs when the measurement tool used is faulty. Example, 10 weighing machines. 9 of them are correct, one is faulty. The weight measured on a faulty machine will be higher / lower than the rest of the measurements in the gourds. The weights measured on faulty machines can lead to abnormal values.
    • Experimental Error, another cause of outliers is the experimental error, caused by an abnormal event that has affected the outcome of the experiment itself.
    • Intentional Outlier, in general are related to sensitive data. For example: imagine you interview some young people on alcohol consumption. Only some of them will report the actual value; in this case the actual values may appear as outliers.
    • Data Processing Error, usually in data mining activities, we extract data from more sources. It is possible that some errors of manipulation or extraction bring outliers in the set of final data.
    • Sampling Error, for example, we have to measure the height of few athletes. For error, we include a pair of basket players in the sample. This inclusion can cause abnormal values in the set of data.
    • Natural Outlier, when an outlier is not artificial (caused by one of the previously identified errors), is precisely a natural erratic value.
  • Outlier Consequences
    • Increase the error variance and reduce the power of the statistical tests.
    • If outliers are not distributed randomly, they can compromise the normality of some distributions.
    • They can heavily influence the estimates of interest.
    • They may have an impact on the basic assumptions of regression, ANOVA and other statistical models.
    • Example:

As you can see, the data with outliers have significantly different mean and standard deviation. In the first scenario, the average is 5.45. But with the outlier, the average increases to 30. This changes completely our estimate of the central distribution location.

• Outliers, How To Identify Them, the most commonly used methods to detect outliers are charts, such as Box Plot, Histogram, Scatter Plot (previously we used box plots and scatter plots to display).

Some analysts also various rules of thumb to detect outliers:

• Values that are beyond the limits of -1.5 x 1.5 x IQR.
• Values outside the range between the 5^th^ and 95^th^ percentile.
• Values far three or more standard deviations from the mean.
• Identification of influential points, through appropriate influence or leverage ratios, such as Mahalanobis distance and Cook's D.
• Outliers, How To Remove, most of the ways to put a remedy to the anomalies of the data are similar to the methods used to treat the missing values:
  • Elimination of Observations, it is appropriate if they are the result of a data entry error or if the outliers are relatively few in number, we can also cut the extreme tails of the distribution.
  • Data Transformations, logarithmic transformation, grouping into categories, reducing their impact on the analysis (weighting).
  • Treating them as a Separate Group, in the presence of a significant number of abnormal data, it may be appropriate to separate them from the rest of the observations, estimate an ad hoc predictive model and integrate it with the base model.
  • Replacing values, as in the case of the missing data, we can replace with mean, mode or specific predictive models.

Variables Transformation

• Motivation and Methods

  In modeling, the variable transformation involves the replacement of the variable with a function of the variable itself: for example, the square, the square root, the cube root or the logarithm x is a transformation. Motivations to proceed into a variable transformation:

• When you want to change the scale of a variable or standardize his values. Sometimes this transformation is essential if you are working with data expressed in different scales, in any case do not change the shape of the distribution of the variable.
• When we can not transform complex linear relationships in linear relationships. The existence of a linear relationship between variables is easier to estimate and manage than a non-linear. The scatter plot can be used to find the relationship between two continuous variables; these transformations also improve the prediction. The logarithmic transformation is one of the commonly used processing techniques for this purpose.

• When a symmetrical distribution is preferred to an asymmetrical: some predictive models require the normality of the variables used and the transformations of variables may at least partially remove the asymmetry; in particular for right asymmetric distribution you can use the square root transformations or cubic or the logarithm, for those left oblique the square, the cube or the exponential.
• When business evaluations lead us to conclude that is significant for the analysis and for the deployment of the model to use appropriate categorizations of the variables (ex. Age group, household income classes, etc.)
• When you want to use categorical variables in models that accept only numerical variables (transformation of categorical variables into dummy variables -- 0/1).
• Creation of New Variables

Data Preparation - Airbnb Case

Some info about Airbnb Airbnb is an online portal that connects people who look for a home or a room for short periods with people who have an extra space to rent, generally private. The site was opened in October 2007 by Brian Chesky, Joe Gebbia and Nathan Blecharczyk. The idea comes from the fact that in 2007 Brian and Joe moved to San Francisco; at that time the Industrial Design Society of America was organizing the annual conference and the availability of rooms in the hotel was exhausted. They were not able to pay their rent, so offered part of their apartment to other travelers interested in the conference. In January 2009 the company started thanks to the incubator Y Combinator. The continued its rapid growth, and in November 2010 received 7.2 million dollars from Greylock Partners and Sequoia Capital, reaching the milestone of 700,000 nights booked, the 80% in the last 6 months of 2010. In February 2011, the nights booked arrived at one million and the turnover increased by 65% compared to the previous month. 25 May 2011, the actor and partner of A-Grade Investments, Ashton Kutcher, announced a major investment in the company and its role as strategic brand ambassador. The company is in continuous international expansion: buying Accoleo, a German ambassador. In July 2011, Airbnb receives an additional $112 million dollars and the valuation of $1 billion. Currently, Airbnb has reached a quote share higher than $20 billion dollars, far above the value of many of the world's leading hotel chains.

The Case: Which Users Will Probably Book a First Experience with Airbnb? The new Airbnb users can reserve a location in more than 34,000 cities and in more than 190 countries. Being able to accurately predict whether a new user will book the first travel experience, Airbnb can:

• Share more personalized content to their community, aiming the communication on higher potential users.
• Reduce the average time to the first booking.
• Better predict the demand. For the analysis, a sample of users has been extracted with their demographics data, some web sessions records, and some summary statistics on users. The objective is indeed to predict how likely will be made a reservation by a new user. All users included in this analysis are in the US.

Available Data There are 12 possible outcomes in the data to generate the analysis target variable: the country of destination may in fact be "United States", "FR", "CA", ..., "NDF" (No destination) and "Other". "NDF" is different from "Others", because "Others" means that there was actually a reservation, but in a country not included in the list, while "NDF" means that there was no reservation. The training dataset contains a sample of 213,451 users with accounts created from 1/1/2010 until 30/6/2014. In the dataset containing the web sessions, the 01/01/2014 behavior data, while the users dataset dates back to 2010.

Reading of Data Files The analysis flow start from reading two important files: the data of users included in the analysis and the file relating to activity sessions recorded by users themselves from 1/1/2014 to 06/30/2014. The first analysis involves the verification of the correct data read and data quality for any subsequent data cleaning stages. In KNIME the Statistics node allows you to calculate the distributions of qualitative variables and some summary measures of quantitative variables in this case the unique numerical are ages in train users and secs_elapsed in sessions). The Interactive Tables node enables you to display the data files to better understand the nature of any problems in the data. The analysis shows the necessity of careful data preparation, working both on data cleansing and on the transformation of the available variables.

Processing of Relevant Data The first part of the analysis is linked to the need of selecting only active customers starting from 2014, and consider the sessions preceding their reservation. Before doing this, it has been necessary to obtain the date of the first activity business from the timestamp available, through appropriate string functions and subsequent transformation into a date field. Secondly, it has been calculated the number of seconds elapsed between the date of initial activity and the reservation date (with a daily level approximation); this figure will serve to isolate, at least by approximation, previous sessions with respect to the booking day. As can be seen from the data, about 1 out of 6 customers that book, book on the first day of activities on the website.

Selection of Active Visitors since 2014 The first part of the analysis, however, is linked to the necessity of selecting only active visitors since 2014, to select then the sessions before their reservation (considering the sessions dates available). From 213,451 visitors contained in the training set, 76,430 started surfing the website in 2014 and then they are selected for analysis. Using the number of seconds that have passed since their first action on the website (file sessions.csv) and the difference between the date of first visit previously built and the eventual date of reservation, we have selected the relevant sessions as predictors of booking. For visitors without booking all actions carried out in the six months available were considered.
